Volvo

EC20 D

Mini Excavator

Operating Weight
5,737 lb
Max Digging Depth
98 in
Net Power
15.0 hp
All mini excavators

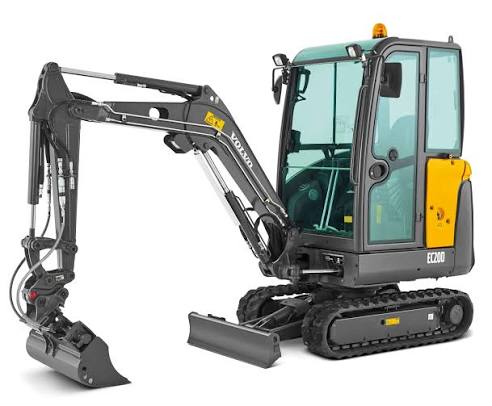

Volvo EC20 D Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,737 lb

Engine

Engine specifications
Engine ModelDO.9A
Displacement898 in³
Net Power15.0 hp
Number of Cylinders3
Max Torque38 lb-ft
Stroke3 in
Bore3 in
Max Power—
Rated Engine Speed2,420 rpm
Fuel tank5.3 gal

Dimensions

Dimensions specifications
Height - Top of Cab95 in
Overall Length148 in
Tail Swing Radius43 in
Shoe width11 in
Track length64 in

Undercarriage

Undercarriage specifications
Drawbar Pull323,725 lb
Number of bottom rollers per side4
Track tensionby grease piston
Shoe width - rubber10 in

Fluid Capacities

Fluid Capacities specifications
Engine Oil1.0 gal
Hydraulic Tank4.0 gal
Engine coolant1.1 gal
Travel reduction0.7 gal
Hydraulic tank - Total system5.6 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth98 in
Max Vertical Wall Digging Depth67 in
Max Cutting Height150 in
Max.Dumping Height104 in
Max Digging Reach157 in
Max Digging Reach on Ground157 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Loader

Loader specifications
Breakout Force—

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
Swing Torque224 lb-ft

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth110 in
Max Cutting Height157 in
Max Vertical Wall Digging Depth78 in
Max.Dumping Height111 in
Max Digging Reach168 in
Max Digging Reach on Ground168 in

Electrical System

Electrical System specifications
Battery capacity64 Ah
Voltage12 V

Performance

Performance specifications
Travel speed low2.5 mph
Gradeability30.0 %
Travel Speed - High4.7 mph
