Komatsu

PC400LC-6 EXCEL

Excavator

Operating Weight
92,925 lb
Max Digging Depth
268 in
Max Digging Depth
288 in
Net Power
305.8 hp
All excavators

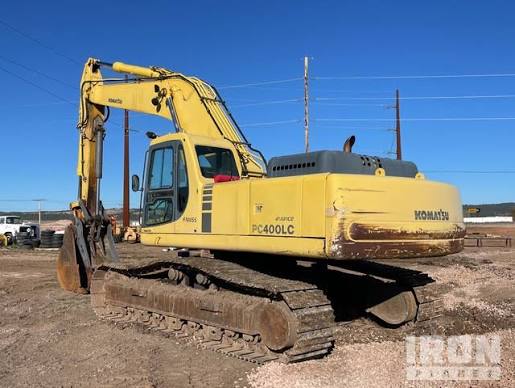

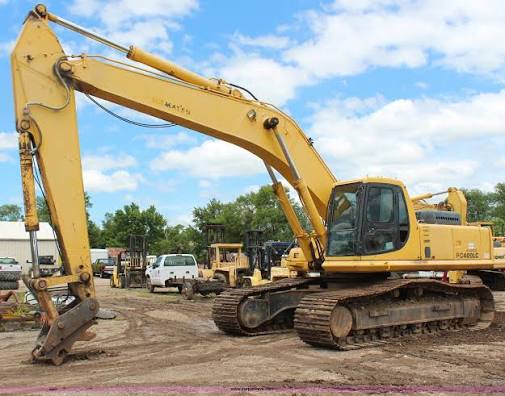

Komatsu PC400LC-6 EXCEL Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight92,925 lb
Fuel Capacity159.9 gal
Hydraulic Pump Flow Capacity162.8 gal/min
Hydraulic System Fluid Capacity71.4 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D125E
Displacement674 in³
Power Measured @1,950 rpm
Net Power305.8 hp

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab130 in
Length of Track on Ground172 in
Tail Swing Radius138 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance53 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge108 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth268 in
Max Reach Along Ground427 in
Max Loading Height278 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height406 in
Shipping Length of Unit469 in
Shipping Height of Unit146 in

Bucket

Bucket specifications
Reference Bucket Capacity2.39 yd³
Maximum Bucket Capacity2.90 yd³
Minimum Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth288 in
Max Vertical Wall Digging Depth224 in
Max Cutting Height407 in
Max Loading Height280 in
Max Reach Along Ground443 in
Shipping Length of Unit468 in
Shipping Height of Unit148 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth306 in
Max Cutting Height431 in
Max Loading Height299 in
Max Vertical Wall Digging Depth270 in
Max Reach Along Ground466 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth331 in
Max Cutting Height435 in
Max Reach Along Ground487 in
Max Loading Height305 in
Max Vertical Wall Dig Depth287 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth362 in
Max Reach Along Ground519 in
Max Cutting Height454 in
Max Loading Height322 in
Max Vertical Wall Dig Depth324 in
Shipping Height of Unit173 in
Shipping Length of Unit461 in
