Caterpillar

225D

Excavator

Operating Weight
55,998 lb
Max Digging Depth
235 in
Max Digging Depth
252 in
Net Power
150.0 hp
All excavators

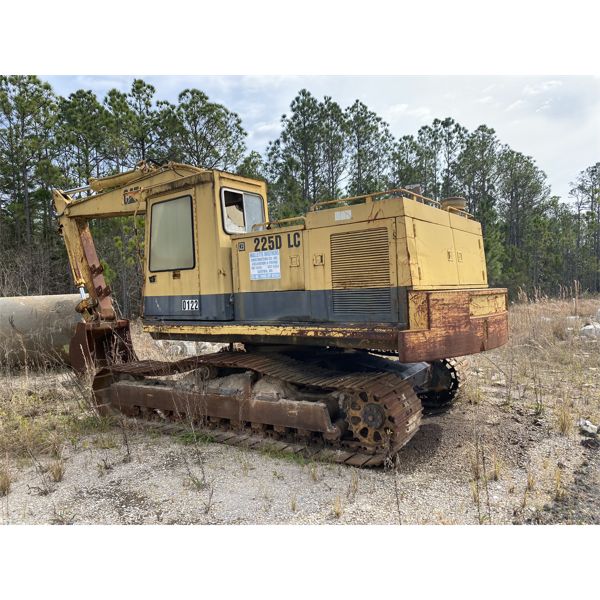

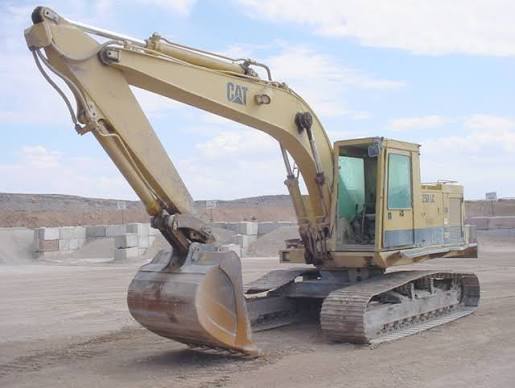

Caterpillar 225D Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight55,998 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity109.9 gal/min
Hydraulic System Relief Valve Pressure4,600 psi

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Net Power150.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Tail Swing Radius115 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge97 in
Max Travel Speed2.3 mph
Shoe Size22 in
Drawbar Pull40,016 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth235 in
Max Reach Along Ground364 in
Max Loading Height230 in
Max Vertical Wall Digging Depth126 in
Max Cutting Height333 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth252 in
Max Vertical Wall Digging Depth130 in
Max Cutting Height330 in
Max Loading Height229 in
Max Reach Along Ground377 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth276 in
Max Cutting Height337 in
Max Loading Height238 in
Max Vertical Wall Digging Depth139 in
Max Reach Along Ground400 in
