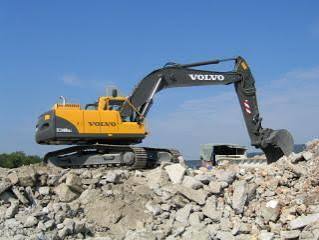

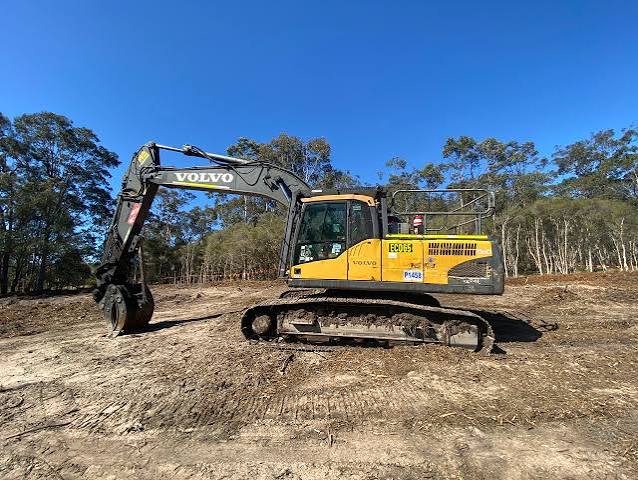

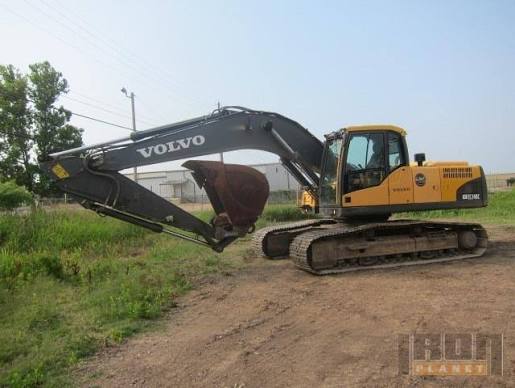

Volvo
EC240CL
- Operating Weight
- 55,777 lb
- Max Digging Depth
- 257 in
- Max Digging Depth
- 276 in
- Net Power
- 167.7 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 55,777 lb |
|---|---|
| Fuel Capacity | 124.2 gal |
| Hydraulic Pump Flow Capacity | 121.6 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Engine Oil Capacity | 8.0 gal |
| Cooling System Fluid Capacity | 9.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.2 gal |
Engine
| Engine Model | D7E EBE3 |
|---|---|
| Displacement | 436 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 185.1 hp |
| Net Power | 167.7 hp |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 642 lb-ft |
| Engine Make | Volvo |
| Stroke | 5 in |
| Bore | 4 in |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 183 in |
| Tail Swing Radius | 118 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 46,985 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 257 in |
|---|---|
| Max Reach Along Ground | 381 in |
| Max Loading Height | 264 in |
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 379 in |
| Shipping Length of Unit | 403 in |
| Shipping Height of Unit | 127 in |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 276 in |
|---|---|
| Max Vertical Wall Digging Depth | 235 in |
| Max Cutting Height | 381 in |
| Max Loading Height | 269 in |
| Max Reach Along Ground | 397 in |
| Shipping Length of Unit | 400 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 300 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 269 in |
| Max Vertical Wall Digging Depth | 265 in |
| Max Reach Along Ground | 417 in |
| Shipping Length of Unit | 402 in |
| Shipping Height of Unit | 402 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 565 in |
|---|---|
| Max Cutting Height | 587 in |
| Max Reach Along Ground | 718 in |
| Max Loading Height | 496 in |
| Max Vertical Wall Dig Depth | 504 in |
