Komatsu

PC400LC-8

Excavator

Operating Weight
100,637 lb
Max Digging Depth
270 in
Max Digging Depth
289 in
Net Power
344.7 hp
All excavators

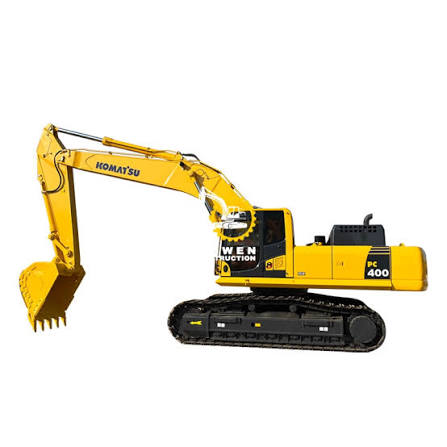

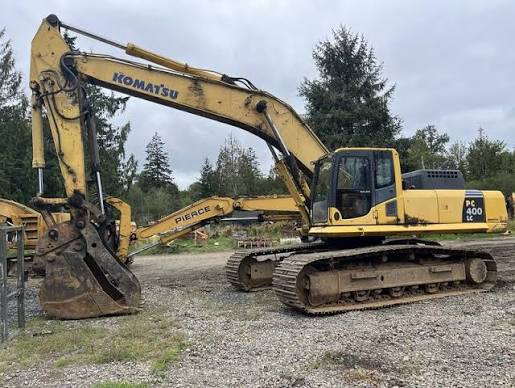

Komatsu PC400LC-8 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight100,637 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity182.3 gal/min
Hydraulic System Fluid Capacity65.6 gal
Hydraulic System Relief Valve Pressure5,400 psi
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity9.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity4.3 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelSAA6D125E-5
Displacement674 in³
Power Measured @1,900 rpm
Gross Power362.1 hp
Net Power344.7 hp
AspirationTurbocharged aftercooled

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab130 in
Length of Track on Ground212 in
Tail Swing Radius144 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance53 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge108 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size36 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull73,962 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth270 in
Max Reach Along Ground428 in
Max Loading Height278 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height407 in
Shipping Length of Unit469 in
Shipping Height of Unit152 in

Bucket

Bucket specifications
Reference Bucket Capacity2.60 yd³
Maximum Bucket Capacity3.81 yd³
Minimum Bucket Capacity1.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth289 in
Max Vertical Wall Digging Depth289 in
Max Cutting Height406 in
Max Loading Height280 in
Max Reach Along Ground443 in
Shipping Length of Unit473 in
Shipping Height of Unit148 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth308 in
Max Cutting Height431 in
Max Loading Height299 in
Max Vertical Wall Digging Depth271 in
Max Reach Along Ground466 in
Shipping Length of Unit470 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth333 in
Max Cutting Height434 in
Max Reach Along Ground487 in
Max Loading Height305 in
Max Vertical Wall Dig Depth288 in
Shipping Length of Unit472 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth365 in
Max Reach Along Ground520 in
Max Cutting Height452 in
Max Loading Height322 in
Max Vertical Wall Dig Depth322 in
Shipping Height of Unit175 in
Shipping Length of Unit465 in
