Komatsu

PC450-6

Excavator

Operating Weight
94,931 lb
Max Digging Depth
263 in
Max Digging Depth
282 in
Net Power
306.0 hp
All excavators

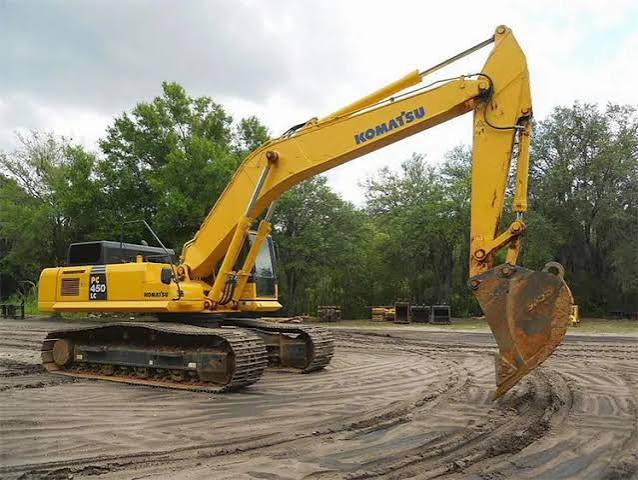

Komatsu PC450-6 Excavator
1 / 5
Image 1 of 5
Image: makana.com

Specifications

68 data points

Operating Specifications

Operating Specifications specifications
Operating Weight94,931 lb
Fuel Capacity159.9 gal
Hydraulic Pump Flow Capacity198.7 gal/min
Hydraulic System Fluid Capacity71.4 gal
Engine Oil Capacity8.5 gal
Cooling System Fluid Capacity12.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity5.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelSA6D125E-2
Displacement674 in³
Power Measured @1,950 rpm
Gross Power323.0 hp
Net Power306.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab130 in
Length of Track on Ground158 in
Tail Swing Radius144 in
Width to Outside of Tracks137 in
Removal Counterweight Clearance53 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge114 in
Number of Track Rollers per Side7
Max Travel Speed3.4 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2
Drawbar Pull74,957 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth263 in
Max Reach Along Ground435 in
Max Loading Height283 in
Max Vertical Wall Digging Depth205 in
Max Cutting Height411 in
Shipping Length of Unit475 in
Shipping Height of Unit146 in

Bucket

Bucket specifications
Reference Bucket Capacity2.69 yd³
Minimum Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth282 in
Max Vertical Wall Digging Depth220 in
Max Cutting Height411 in
Max Loading Height285 in
Max Reach Along Ground451 in
Shipping Length of Unit474 in
Shipping Height of Unit148 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth301 in
Max Cutting Height435 in
Max Loading Height304 in
Max Vertical Wall Digging Depth265 in
Max Reach Along Ground474 in
Shipping Length of Unit473 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth325 in
Max Cutting Height441 in
Max Reach Along Ground494 in
Max Loading Height309 in
Max Vertical Wall Dig Depth282 in
Shipping Length of Unit473 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth212 in
Max Reach Along Ground480 in
Max Cutting Height535 in
Max Loading Height391 in
Max Vertical Wall Dig Depth170 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth251 in
Max Reach Along Ground519 in
Max Cutting Height569 in
Max Loading Height425 in
Max Vertical Wall Dig Depth196 in
