Volvo
JCB
JS240L
Excavator
13 specifications
1 / 5

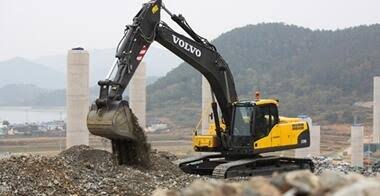

Image 1 of 5
Specifications
60 data points
Operating Specifications
| Operating Weight | 57,110 lb |
|---|---|
| Fuel Capacity | 32.8 gal |
| Hydraulic Pump Flow Capacity | 122.0 gal/min |
| Hydraulic System Fluid Capacity | 22.5 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 2.2 gal |
| Cooling System Fluid Capacity | 2.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.9 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D7E EBE3 |
|---|---|
| Displacement | 436 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 185.0 hp |
| Net Power | 168.0 hp |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 642 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 152 in |
| Tail Swing Radius | 118 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 46,960 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 257 in |
|---|---|
| Max Reach Along Ground | 381 in |
| Max Loading Height | 264 in |
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 379 in |
| Shipping Length of Unit | 403 in |
| Shipping Height of Unit | 127 in |
Bucket
| Reference Bucket Capacity | 1.90 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 276 in |
|---|---|
| Max Vertical Wall Digging Depth | 235 in |
| Max Cutting Height | 381 in |
| Max Loading Height | 269 in |
| Max Reach Along Ground | 397 in |
| Shipping Length of Unit | 400 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 300 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 269 in |
| Max Vertical Wall Digging Depth | 265 in |
| Max Reach Along Ground | 417 in |
| Shipping Length of Unit | 402 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 565 in |
|---|---|
| Max Cutting Height | 587 in |
| Max Reach Along Ground | 718 in |
| Max Loading Height | 496 in |
| Max Vertical Wall Dig Depth | 504 in |
| Shipping Length of Unit | 568 in |
