8010 CTS
Mini Excavator
34 specifications
1 / 5

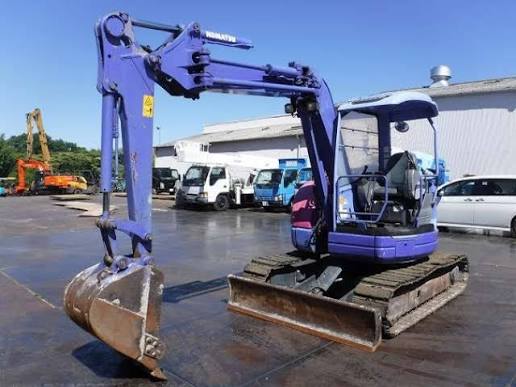

Image 1 of 5
Specifications
34 data points
Operating Specifications
| Fuel Capacity | 21.1 gal |
|---|---|
| Hydraulic System Fluid Capacity | 16.9 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 2.4 gal |
Engine
| Engine Model | 4D88E |
|---|---|
| Displacement | 134 in³ |
| Net Power | 40.0 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 76 in |
|---|---|
| Height - Top of Cab | 103 in |
| Tail Swing Radius | 17 in |
| Width to Outside of Tracks | 17 in |
| Removal Counterweight Clearance | 97 in |
| Digging Depth | 156 in |
| Digging Reach | 156 in |
Undercarriage
| Number of Track Rollers per Side | 5 |
|---|---|
| Max Travel Speed | 2.8 mph |
| Number of Shoes per Side | 38 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 10,251 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 114 in |
|---|---|
| Max Reach Along Ground | 157 in |
| Max Vertical Wall Digging Depth | 138 in |
| Max Loading Height | 181 in |
| Shipping Length of Unit | 250 in |
| Max Cutting Height | 192 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 125 in |
|---|---|
| Max Cutting Height | 192 in |
| Max Loading Height | 157 in |
| Max Reach Along Ground | 174 in |
| Shipping Length of Unit | 263 in |
