Komatsu

PC60-7

Mini Excavator

Operating Weight
13,845 lb
Max Digging Depth
162 in
Net Power
53.7 hp
All mini excavators

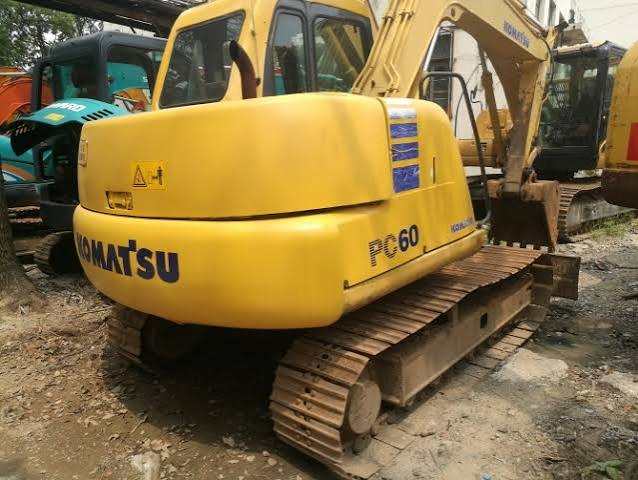

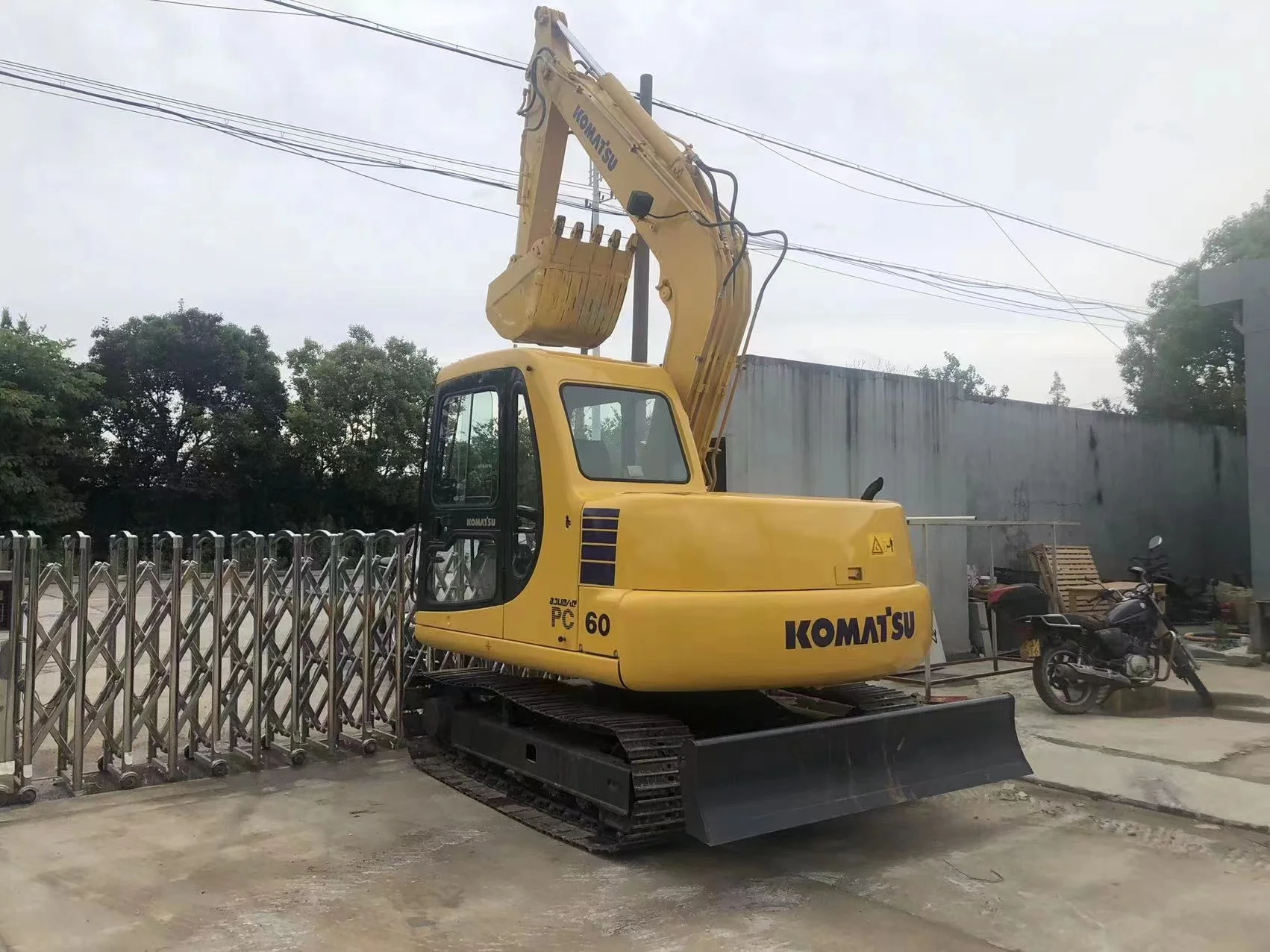

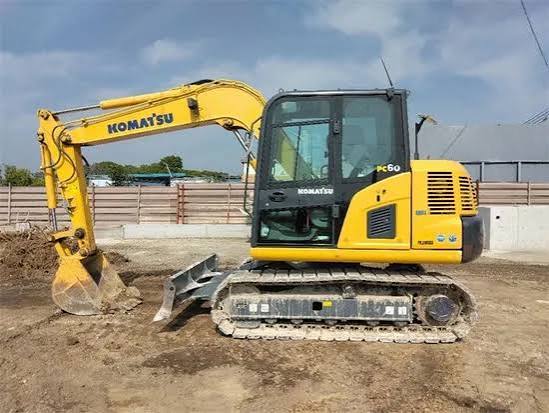

Komatsu PC60-7 Mini Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,845 lb
Fuel Capacity34.4 gal
Hydraulic Pump Flow Capacity41.0 gal/min
Hydraulic System Fluid Capacity15.1 gal
Hydraulic System Relief Valve Pressure3,560 psi

Engine

Engine specifications
Engine Model4D102E
Displacement239 in³
Power Measured @1,750 rpm
Net Power53.7 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab102 in
Tail Swing Radius70 in
Width to Outside of Tracks85 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge67 in
Max Travel Speed2.8 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth162 in
Max Reach Along Ground246 in
Max Vertical Wall Digging Depth138 in
Max Loading Height198 in
Shipping Length of Unit240 in
Max Cutting Height282 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth181 in
Max Cutting Height281 in
Max Loading Height199 in
Max Vertical Wall Digging Depth150 in
Max Reach Along Ground268 in
Shipping Height of Unit111 in
Shipping Length of Unit241 in
