New Holland

EH35.B

Mini Excavator

Operating Weight
8,378 lb
Max Digging Depth
122 in
Net Power
28.4 hp
All mini excavators

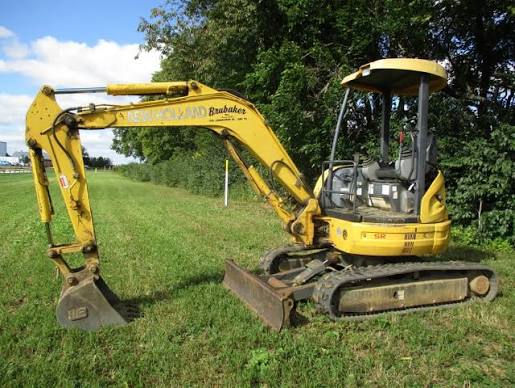

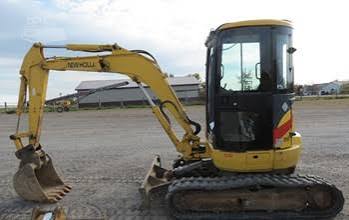

New Holland EH35.B Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,378 lb
Fuel Capacity10.1 gal
Hydraulic Pump Flow Capacity7.6 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine Model-3TNV88-PYB
Displacement100 in³
Power Measured @2,400 rpm
Net Power28.4 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab100 in
Length of Track on Ground67 in
Tail Swing Radius33 in
Width to Outside of Tracks67 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.8 mph
Shoe Size12 in
Drawbar Pull8,587 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth122 in
Max Reach Along Ground202 in
Max Vertical Wall Digging Depth95 in
Max Loading Height142 in
Max Cutting Height197 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque752 lb-ft
