Yanmar

VIO35-5

Mini Excavator

Operating Weight
8,444 lb
Max Digging Depth
131 in
Net Power
28.1 hp
All mini excavators

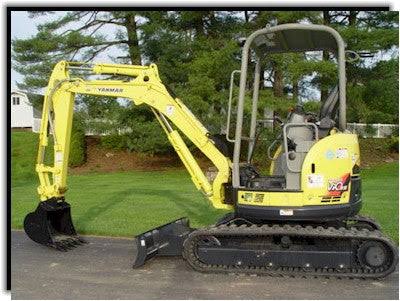

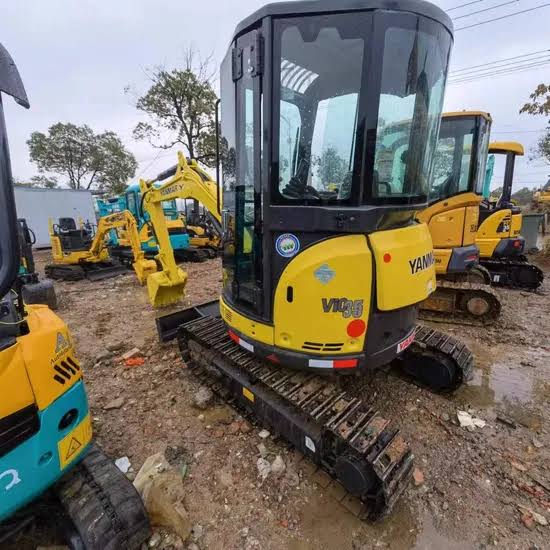

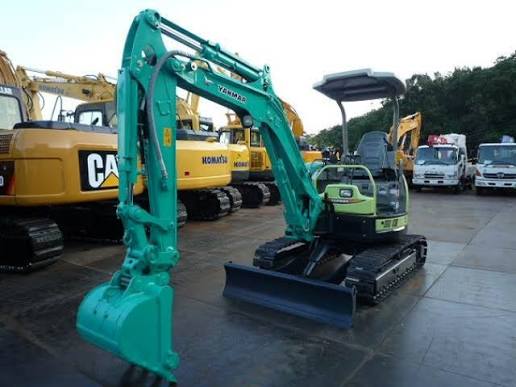

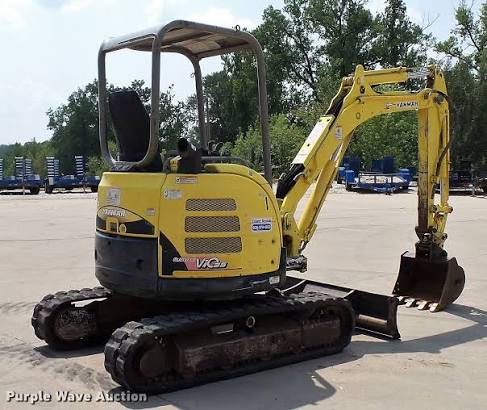

Yanmar VIO35-5 Mini Excavator
1 / 5
Image 1 of 5
Image: yanmarce.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,444 lb
Hydraulic Pump Flow Capacity20.4 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV88-BQBVB
Displacement100 in³
Power Measured @2,300 rpm
Net Power28.1 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance13 in
Length of Track on Ground84 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth131 in
Max Reach Along Ground206 in
Max Vertical Wall Digging Depth113 in
Max Loading Height141 in
Shipping Length of Unit183 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
