Komatsu

PC600-7

Excavator

Operating Weight
124,520 lb
Max Digging Depth
335 in
Max Digging Depth
278 in
Net Power
385.0 hp
All excavators

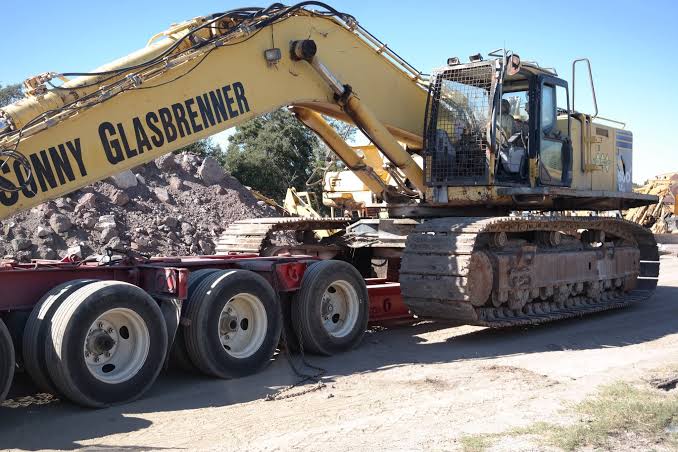

Komatsu PC600-7 Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight124,520 lb
Fuel Capacity232.5 gal
Hydraulic Pump Flow Capacity216.7 gal/min
Hydraulic System Fluid Capacity95.2 gal
Hydraulic System Relief Valve Pressure4,978 psi
Engine Oil Capacity9.8 gal
Cooling System Fluid Capacity15.1 gal
Swing Drive Fluid Capacity3.5 gal

Engine

Engine specifications
Engine ModelSA6D140E-3
Displacement930 in³
Power Measured @1,800 rpm
Net Power385.0 hp
AspirationTurbocharged with aftercooler

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab130 in
Length of Track on Ground181 in
Tail Swing Radius150 in
Width to Outside of Tracks154 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure15 psi
Track Gauge102 in
Number of Track Rollers per Side8
Max Travel Speed3.1 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side3
Drawbar Pull93,256 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth335 in
Max Reach Along Ground504 in
Max Loading Height315 in
Max Vertical Wall Digging Depth296 in
Max Cutting Height468 in
Shipping Length of Unit505 in
Shipping Height of Unit169 in

Bucket

Bucket specifications
Reference Bucket Capacity3.60 yd³
Maximum Bucket Capacity4.60 yd³
Minimum Bucket Capacity3.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth278 in
Max Vertical Wall Digging Depth222 in
Max Cutting Height439 in
Max Loading Height284 in
Max Reach Along Ground445 in
Shipping Length of Unit467 in
Shipping Height of Unit181 in
