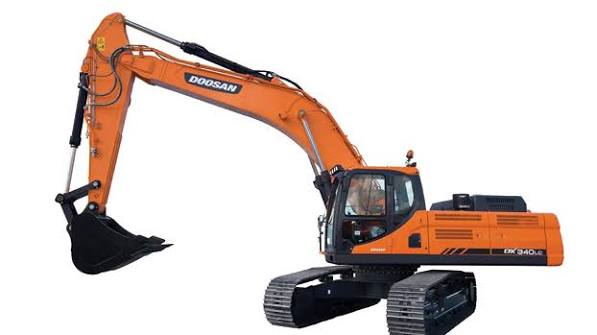

Doosan
DX340LC
- Operating Weight
- 75,178 lb
- Max Digging Depth
- 274 in
- Max Digging Depth
- 298 in
- Net Power
- 247.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 75,178 lb |
|---|---|
| Fuel Capacity | 145.3 gal |
| Hydraulic Pump Flow Capacity | 140.1 gal/min |
| Hydraulic System Fluid Capacity | 121.6 gal |
| Hydraulic System Relief Valve Pressure | 4,699 psi |
| Engine Oil Capacity | 9.6 gal |
| Cooling System Fluid Capacity | 9.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | DL08 |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 1,750 rpm |
| Net Power | 247.0 hp |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 846 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 138 in |
| Width to Outside of Tracks | 130 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 274 in |
|---|---|
| Max Reach Along Ground | 409 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 203 in |
| Max Cutting Height | 394 in |
| Shipping Length of Unit | 449 in |
| Shipping Height of Unit | 142 in |
Bucket
| Reference Bucket Capacity | 2.00 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.39 yd³ |
| Minimum Bucket Capacity | 1.70 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 298 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 408 in |
| Max Loading Height | 284 in |
| Max Reach Along Ground | 433 in |
| Shipping Length of Unit | 445 in |
| Shipping Height of Unit | 133 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 326 in |
|---|---|
| Max Cutting Height | 427 in |
| Max Loading Height | 370 in |
| Max Vertical Wall Digging Depth | 270 in |
| Max Reach Along Ground | 463 in |
| Shipping Length of Unit | 445 in |
| Shipping Height of Unit | 138 in |
