Volvo

EC210LC

Excavator

Operating Weight
45,195 lb
Max Digging Depth
222 in
Max Digging Depth
243 in
Net Power
143.0 hp
All excavators

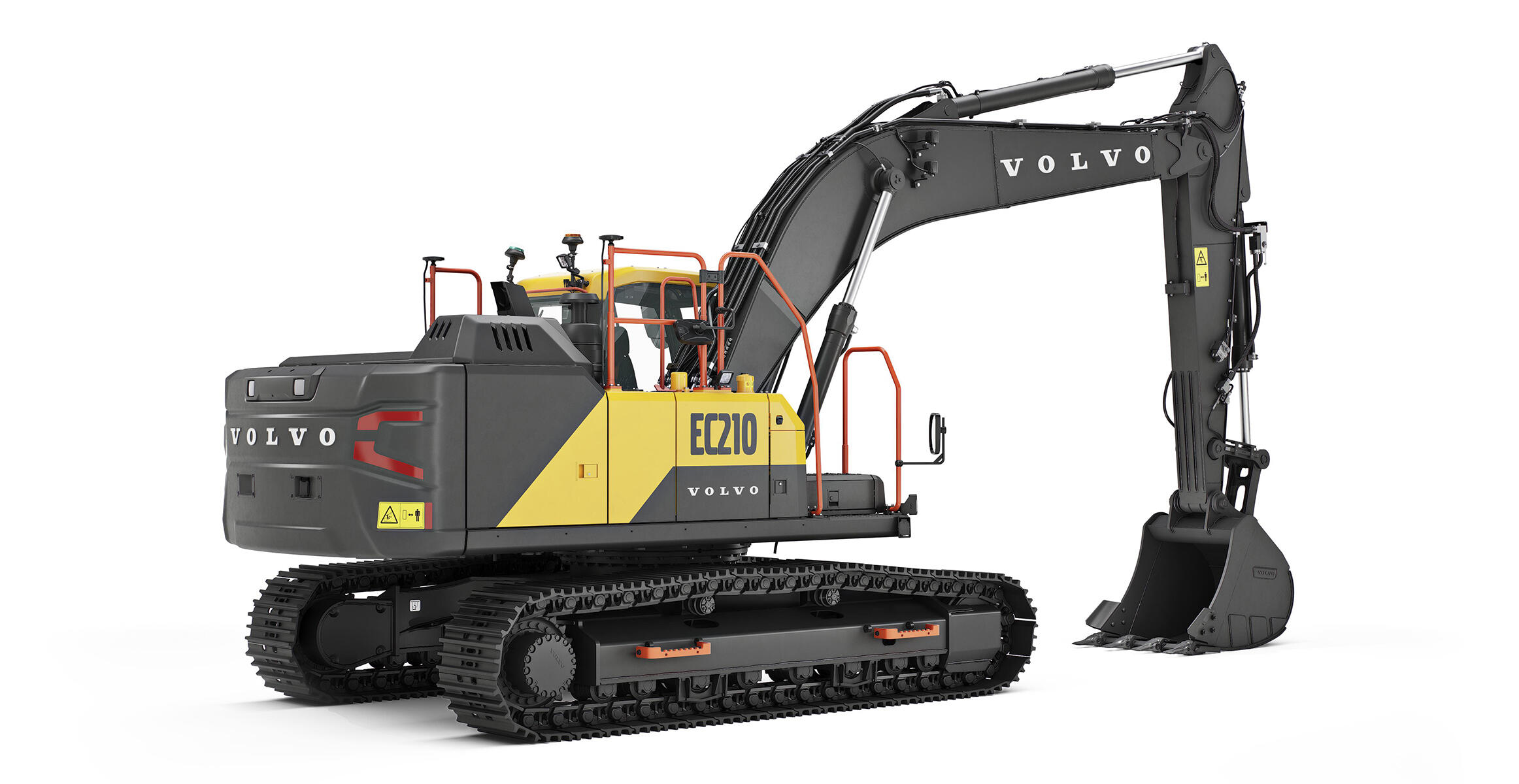

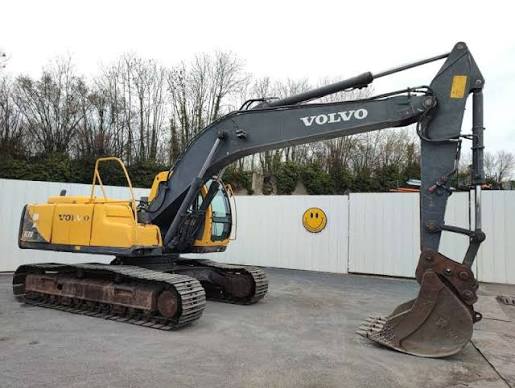

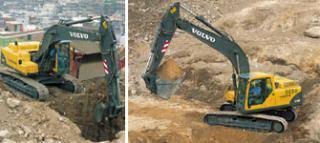

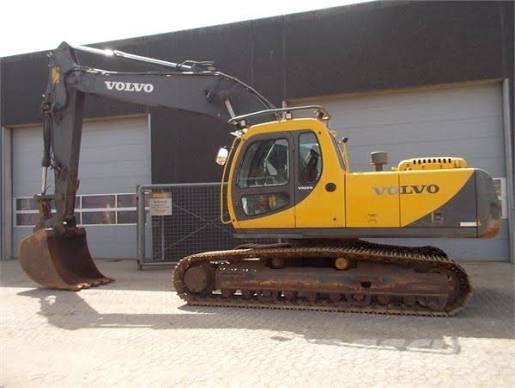

Volvo EC210LC Excavator
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

74 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,195 lb
Fuel Capacity92.5 gal
Hydraulic Pump Flow Capacity105.7 gal/min
Hydraulic System Fluid Capacity75.3 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity7.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB5.9-C
Displacement360 in³
Power Measured @1,900 rpm
Gross Power160.0 hp
Net Power143.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque456 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab115 in
Length of Track on Ground145 in
Tail Swing Radius113 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth222 in
Max Reach Along Ground344 in
Max Loading Height241 in
Max Vertical Wall Digging Depth167 in
Max Cutting Height348 in
Shipping Length of Unit386 in
Shipping Height of Unit125 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity1.70 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth243 in
Max Vertical Wall Digging Depth212 in
Max Cutting Height364 in
Max Loading Height253 in
Max Reach Along Ground364 in
Shipping Length of Unit384 in
Shipping Height of Unit124 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth305 in
Max Cutting Height379 in
Max Loading Height270 in
Max Vertical Wall Digging Depth259 in
Max Reach Along Ground419 in
Shipping Length of Unit381 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth206 in
Max Cutting Height390 in
Max Reach Along Ground341 in
Max Loading Height276 in
Max Vertical Wall Dig Depth157 in
Shipping Length of Unit381 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth226 in
Max Reach Along Ground360 in
Max Cutting Height407 in
Max Loading Height292 in
Max Vertical Wall Dig Depth189 in
Shipping Height of Unit120 in
Shipping Length of Unit379 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth285 in
Max Reach Along Ground415 in
Max Cutting Height441 in
Max Loading Height326 in
Max Vertical Wall Dig Depth244 in
Shipping Length of Unit373 in
Shipping Height of Unit144 in
