Komatsu
Volvo
EC330B LC
Excavator
61 specifications
1 / 5

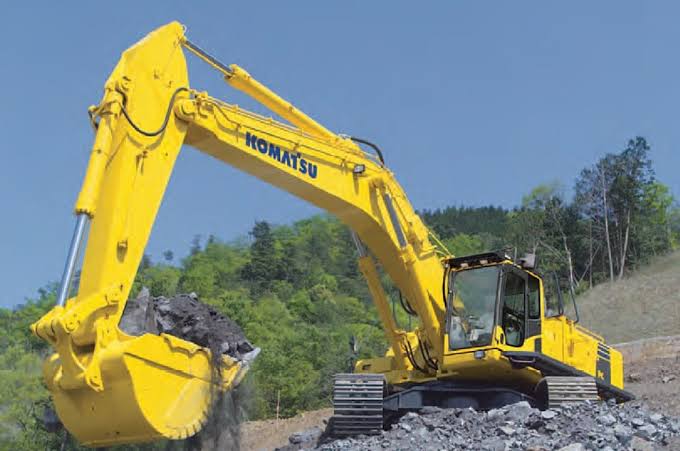

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 128,485 lb |
|---|---|
| Fuel Capacity | 232.5 gal |
| Hydraulic Pump Flow Capacity | 216.7 gal/min |
| Hydraulic System Fluid Capacity | 97.8 gal |
| Hydraulic System Relief Valve Pressure | 4,978 psi |
| Engine Oil Capacity | 11.1 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | SA6D140E-3 |
|---|---|
| Displacement | 930 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 385.0 hp |
| Aspiration | Turbocharged with aftercooler |
Dimensions
| Ground Clearance | 31 in |
|---|---|
| Height - Top of Cab | 131 in |
| Length of Track on Ground | 168 in |
| Tail Swing Radius | 145 in |
| Width to Outside of Tracks | 154 in |
| Removal Counterweight Clearance | 54 in |
Undercarriage
| Ground Pressure | 15 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 93,256 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 278 in |
|---|---|
| Max Reach Along Ground | 445 in |
| Max Loading Height | 284 in |
| Max Vertical Wall Digging Depth | 222 in |
| Max Cutting Height | 439 in |
| Shipping Length of Unit | 491 in |
| Shipping Height of Unit | 169 in |
Bucket
| Reference Bucket Capacity | 3.60 yd³ |
|---|
Swing Mechanism
| Swing Speed | 8 rpm |
|---|
