Hitachi

ZX350LC-6

Excavator

Operating Weight
77,360 lb
Max Digging Depth
222 in
Max Digging Depth
246 in
Net Power
271.0 hp
All excavators

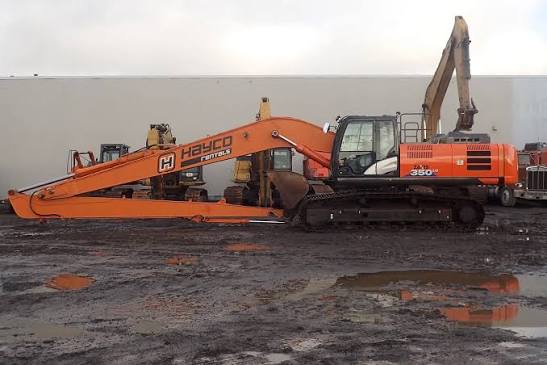

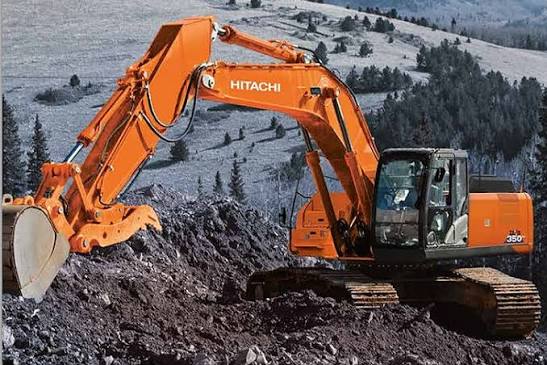

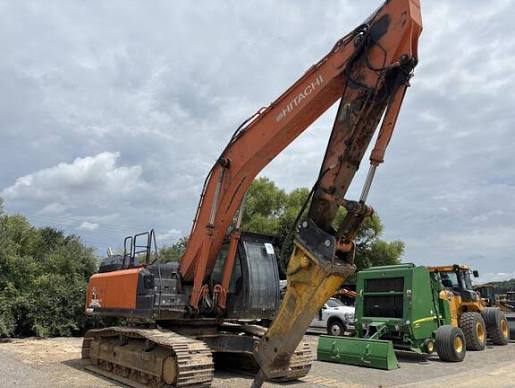

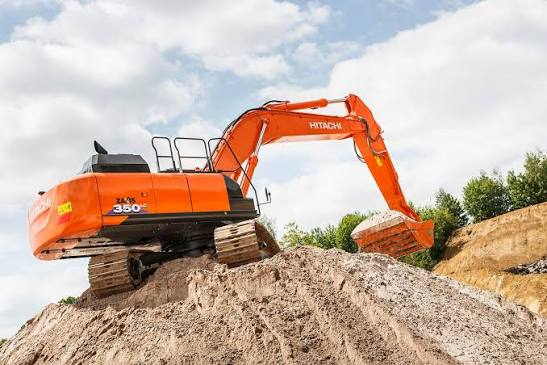

Hitachi ZX350LC-6 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

101 data points

Operating Specifications

Operating Specifications specifications
Operating Weight77,360 lb

Engine

Engine specifications
Engine ModelIsuzu 6HK1
Displacement476 in³
Power Measured @1,900 rpm
Net Power271.0 hp
AspirationTurbocharged air-to-air charge-air cooler
Engine MakeIsuzu
Cooling systemHigh efficiency direct-driven suction-type fan and cool-on-demand hydraulic-driven suction-type fan with remote-mounted drive for hydraulic oil cooler
Emissions levelEPA Final Tier 4 / EU Stage IV
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Main pump - Maximum flow76.1 gal
Hydraulic System TypeOpen center load sensing
Implement - Operating Pressure4,975 psi
Travel - Operating Pressure5,149 psi
ControlsPilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever
Main pump type2 variable-displacement pumps

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Length of Track on Ground433 in
Tail Swing Radius143 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side8
Max Travel Speed3.2 mph
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull66,900 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank166.5 gal
Hydraulic system89.9 gal
Hydraulic Tank47.6 gal
Cooling system11.9 gal
Engine oil with filter12.7 gal
Diesel exhaust fluid (DEF) tank18.5 gal
Swing drive4.2 gal
Propel2.5 gal
Pump Drive0.3 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth222 in
Max Reach Along Ground361 in
Max Loading Height252 in
Max Vertical Wall Digging Depth165 in
Max Cutting Height372 in
Shipping Length of Unit433 in
Shipping Height of Unit159 in
Bucket Digging Force - SAE51,481 lb
Bucket Digging Force - ISO59,350 lb
Arm Digging Force - ISO64,745 lb
Arm Digging Force - SAE61,823 lb

Bucket

Bucket specifications
Maximum Bucket Capacity2.80 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth189 in
Max Cutting Height380 in
Max Loading Height260 in
Max Reach Along Ground381 in
Shipping Length of Unit448 in
Shipping Height of Unit137 in
Bucket Digging Force - SAE48,109 lb
Bucket Digging Force - ISO55,303 lb
Arm Digging Force - SAE47,884 lb
Arm Digging Force - ISO49,908 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth270 in
Max Cutting Height394 in
Max Loading Height274 in
Max Vertical Wall Digging Depth217 in
Max Reach Along Ground408 in
Shipping Length of Unit446 in
Bucket Digging Force - SAE48,109 lb
Bucket Digging Force - ISO55,303 lb
Arm Digging Force - SAE47,884 lb

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth292 in
Max Cutting Height408 in
Max Reach Along Ground430 in
Max Loading Height285 in
Max Vertical Wall Dig Depth253 in
Shipping Length of Unit442 in

Electrical System

Electrical System specifications
Batteries2 x 12 V volts
Battery capacity—
Alternator rating50 amp
Work Lights2 halogen

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth323 in
Max Reach Along Ground459 in
Max Cutting Height424 in
Max Loading Height301 in
Max Vertical Wall Dig Depth287 in
Shipping Height of Unit143 in
Shipping Length of Unit445 in
Bucket Digging Force - ISO55,303 lb
Bucket Digging Force - SAE48,109 lb
Arm Digging Force - ISO35,745 lb
Arm Digging Force - SAE34,396 lb

Cylinders

Cylinders specifications
Bore (Boom)6 in
Bore (Bucket)6 in
Stroke (Bucket)49 in
Bore (Arm)7 in
Stroke (Arm)69 in
Stroke (Boom)60 in
Rod Diameter (Arm)5 in
Rod Diameter (Boom)4 in
Rod Diameter (Bucket)4 in
