Komatsu

PC750-6

Excavator

Max Digging Depth
333 in
Max Digging Depth
372 in
All excavators

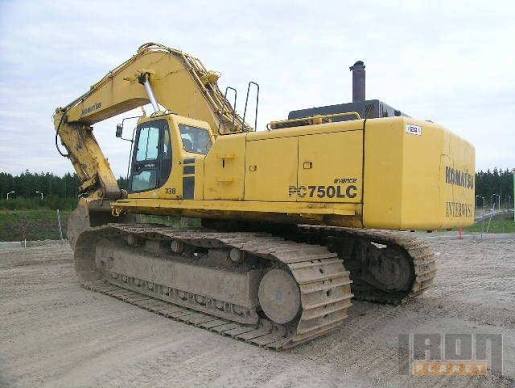

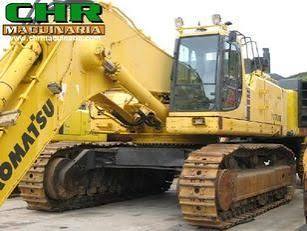

Komatsu PC750-6 Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity232.5 gal
Hydraulic Pump Flow Capacity268.2 gal/min
Hydraulic System Fluid Capacity116.3 gal
Hydraulic System Relief Valve Pressure4,550 psi
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity22.5 gal
Swing Speed6 rpm

Engine

Engine specifications
Displacement930 in³
Power Measured @1,800 rpm
Gross Power444.0 hp
Number of Cylinders6
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance33 in
Height - Top of Cab139 in
Width to Outside of Tracks162 in
Removal Counterweight Clearance62 in
Digging Depth408 in
Digging Reach408 in
Upper Structure Ground Clearance62 in
Length of Tracks250 in

Undercarriage

Undercarriage specifications
Ground Pressure17 psi
Max Travel Speed2.7 mph
Shoe Size24 in
Number of Upper Rollers3
Loading Shovel Operating Weight164,420 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure17 psi
Number of Lower Rollers8
Number of Track Shoes per Side47
Tail Swing Radius169 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth333 in
Max Reach Along Ground527 in
Max Loading Height322 in
Max Vertical Wall Digging Depth247 in
Max Cutting Height470 in
Shipping Length of Unit556 in
Shipping Height of Unit191 in

Bucket

Bucket specifications
Reference Bucket Capacity5.90 yd³
Maximum Bucket Capacity5.90 yd³
Minimum Bucket Capacity5.00 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth372 in
Max Vertical Wall Digging Depth287 in
Max Cutting Height478 in
Max Loading Height328 in
Max Reach Along Ground560 in
Shipping Length of Unit550 in
Shipping Height of Unit235 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth135 in
Max Cutting Height418 in
Max Dump Height301 in
Max Dig Reach393 in
Height to Top of Boom - shovel200 in
Overall Length - shovel385 in
Loading ShovelBoom 4600mm / Stick 3400mm
Arm Crowd Force99,207 lb-ft

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth277 in
Max Cutting Height454 in
Max Dump Height299 in
Max Reach on Ground468 in
Max Vertical Wall Dig Depth194 in
Arm Crowd Force74,515 lb-ft

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth332 in
Max Cutting Height472 in
Max Dump Height324 in
Max Reach on Ground528 in
Max Vertical Wall Dig Depth231 in
Arm Crowd Force64,019 lb-ft
Height to Top of Boom189 in
Overall Length545 in
