Link Belt

370 LX

Excavator

All excavators

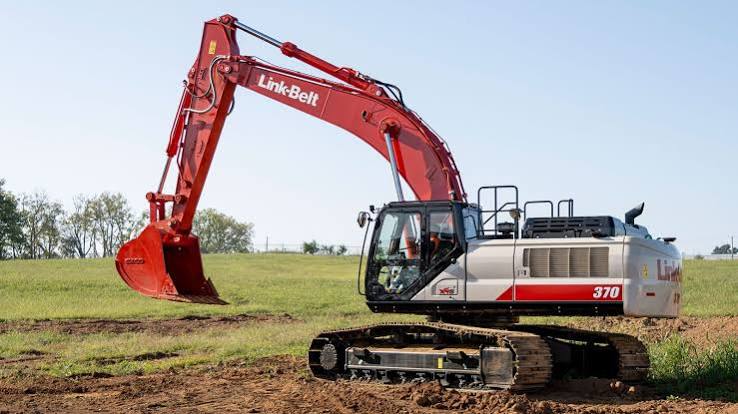

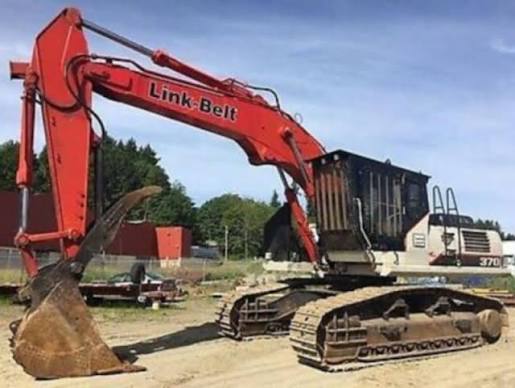

Link Belt 370 LX Excavator
1 / 5
Image 1 of 5
Image: finaldrivescanada.ca

Specifications

52 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment99,045 lb
Fuel Capacity153.3 gal
Hydraulic System Fluid Capacity92.5 gal
Engine Oil Capacity8.8 gal
Cooling System Fluid Capacity11.1 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAA-6HK1XQB
Displacement475 in³
Power Measured @2,000 rpm
Number of Cylinders6
AspirationTurbocharged with Intercooler
Torque Measured @1,600 rpm
Net Torque687 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Type2x Piston Pumps
Pump Capacity150.0 gal/min
Relief Pressure4,970 psi
Pump Flow Capacity150.0 gal/min
Relief Valve Pressure4,970 psi

Dimensions

Dimensions specifications
Ground Clearance29 in
Overall Width144 in
Length of Track on Ground173 in
Tail Swing Radius138 in
Shipping Height141 in
Shipping Length475 in
Undercarriage Width146 in
Upperstructure Clearance59 in

Transmission

Transmission specifications
Max Speed2.6 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge117 in
Shoe Size28 in
Max Speed2.6 mph

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
Swing Torque112,108 lb-ft

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 150'0"" 2 Piece Boom
Max Depth240 in
Max Height660 in
Max Reach Along Ground588 in

Track Undercarriage

Track Undercarriage specifications
Shoe Size28 in
Number of Track Rollers per Side9
Length of Track on Ground173 in
Number of Shoes per Side50
Track Gauge117 in

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Height600 in
Max Reach at Ground Level528 in
Shipping Length652 in
Boom/Stick Option (LGL) 144'0 (13400mm) Loading Arm
Max Depth Below Ground180 in
Shipping Height138 in
