KomatsuHalla
HE50A
Mini Excavator
37 specifications
1 / 5

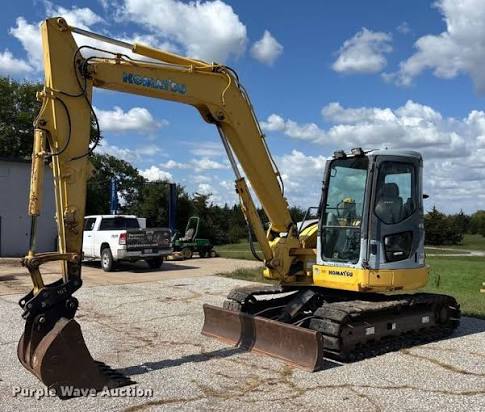

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 18,232 lb |
|---|---|
| Fuel Capacity | 33.1 gal |
| Hydraulic Pump Flow Capacity | 42.3 gal/min |
| Hydraulic System Fluid Capacity | 29.1 gal |
| Hydraulic System Relief Valve Pressure | 3,840 psi |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 25 A |
| Engine Oil Capacity | 2.0 gal |
| Cooling System Fluid Capacity | 2.8 gal |
Engine
| Engine Model | S4D95LE-3 |
|---|---|
| Displacement | 199 in³ |
| Power Measured @ | 1,850 rpm |
| Net Power | 54.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged with aftercooler |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 108 in |
| Tail Swing Radius | 56 in |
| Width to Outside of Tracks | 93 in |
| Removal Counterweight Clearance | 30 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 74 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 2.7 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 39 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 14,550 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 165 in |
|---|---|
| Max Reach Along Ground | 275 in |
| Max Vertical Wall Digging Depth | 115 in |
| Max Loading Height | 179 in |
| Shipping Length of Unit | 245 in |
| Max Cutting Height | 259 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 187 in |
|---|---|
| Max Cutting Height | 269 in |
| Max Loading Height | 189 in |
| Max Vertical Wall Digging Depth | 131 in |
| Max Reach Along Ground | 295 in |
| Shipping Height of Unit | 108 in |
| Shipping Length of Unit | 245 in |
