Halla

HE50A

Mini Excavator

Operating Weight
10,979 lb
Max Digging Depth
155 in
Net Power
56.0 hp
All mini excavators
Halla HE50A Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorcentre.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,979 lb
Fuel Capacity22.5 gal
Hydraulic Pump Flow Capacity30.4 gal/min
Hydraulic System Fluid Capacity13.3 gal
Hydraulic System Relief Valve Pressure3,129 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.7 gal
Cooling System Fluid Capacity2.7 gal
Swing Drive Fluid Capacity0.4 gal

Engine

Engine specifications
Engine Model4TNE94
Displacement169 in³
Net Power56.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,600 rpm
Max Torque140 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Tail Swing Radius111 in
Width to Outside of Tracks74 in
Removal Counterweight Clearance26 in

Undercarriage

Undercarriage specifications
Track Gauge59 in
Number of Track Rollers per Side5
Max Travel Speed2.6 mph
Shoe Size16 in
Number of Shoes per Side40
Number of Carrier Rollers per Side1
Drawbar Pull10,160 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth155 in
Max Reach Along Ground235 in
Max Loading Height145 in
Shipping Length of Unit238 in
Max Cutting Height209 in
Shipping Height of Unit78 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

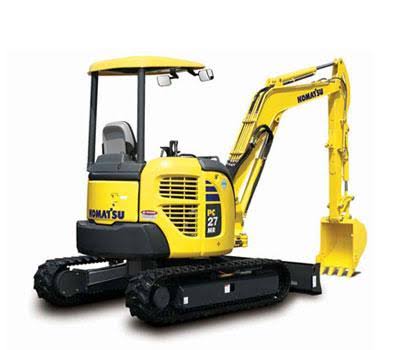

Comparable machines
