Pel-Job

EB30.4

Mini Excavator

Operating Weight
6,592 lb
Max Digging Depth
107 in
Gross Power
27.4 hp
Net Power
21.7 hp
All mini excavators

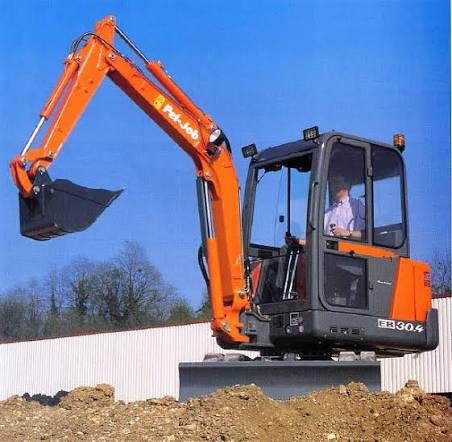

Pel-Job EB30.4 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,592 lb
Fuel Capacity8.0 gal
Hydraulic Pump Flow Capacity13.3 gal/min
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelS3L2
Displacement81 in³
Power Measured @2,800 rpm
Gross Power27.4 hp
Net Power21.7 hp
Number of Cylinders3
Torque Measured @1,600 rpm
Max Torque58 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab96 in
Length of Track on Ground50 in
Tail Swing Radius52 in
Width to Outside of Tracks56 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.7 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth107 in
Max Reach Along Ground182 in
Max Vertical Wall Digging Depth74 in
Max Loading Height127 in
Shipping Length of Unit182 in
Max Cutting Height173 in
Shipping Height of Unit96 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth119 in
Max Cutting Height180 in
Max Loading Height134 in
Max Vertical Wall Digging Depth85 in
Max Reach Along Ground193 in
Shipping Height of Unit96 in
Shipping Length of Unit182 in
