Komatsu

PC80-1

Mini Excavator

Operating Weight
16,976 lb
Max Digging Depth
166 in
Net Power
60.0 hp
All mini excavators

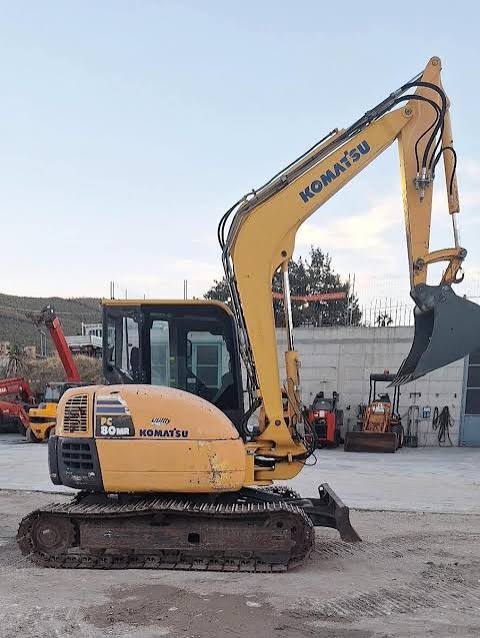

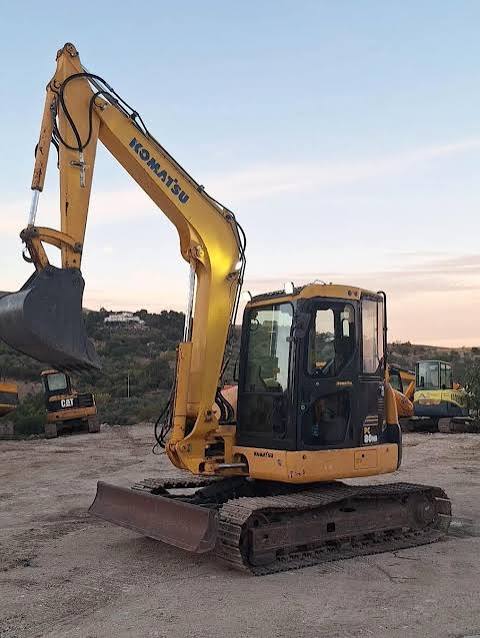

Komatsu PC80-1 Mini Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,976 lb
Fuel Capacity31.8 gal
Hydraulic Pump Flow Capacity69.3 gal/min
Hydraulic System Fluid Capacity37.0 gal
Hydraulic System Relief Valve Pressure2,987 psi

Engine

Engine specifications
Engine Model4D105
Displacement264 in³
Net Power60.0 hp
Max Torque181 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab104 in
Tail Swing Radius70 in
Width to Outside of Tracks89 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge70 in
Max Travel Speed2.4 mph
Shoe Size19 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth166 in
Max Reach Along Ground251 in
Max Vertical Wall Digging Depth125 in
Max Loading Height149 in
Shipping Length of Unit240 in
Max Cutting Height227 in
Shipping Height of Unit104 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth185 in
Max Cutting Height231 in
Max Loading Height157 in
Max Vertical Wall Digging Depth148 in
Max Reach Along Ground269 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth183 in
Max Cutting Height234 in
Max Loading Height158 in
Max Reach Along Ground268 in
Max Vertical Wall Digging Depth149 in
