Komatsu

PW75-1

Excavator

Operating Weight
16,535 lb
Net Power
68.4 hp
All excavators

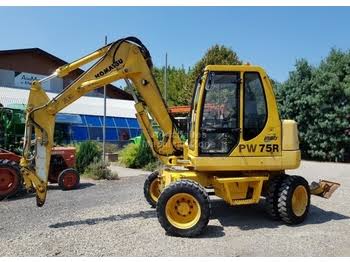

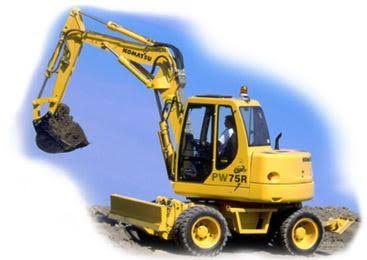

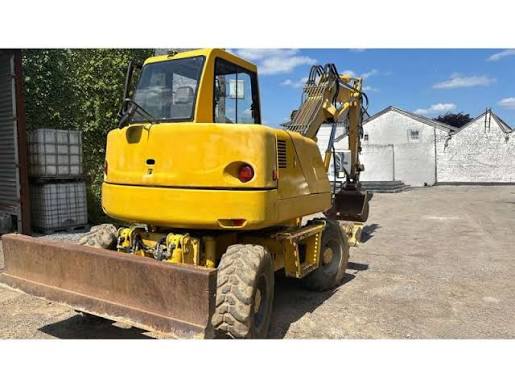

Komatsu PW75-1 Excavator
1 / 5
Image 1 of 5
Image: europe-construction-equipment.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,535 lb
Fuel Capacity26.5 gal
Hydraulic Pump Flow Capacity60.0 gal/min
Hydraulic System Fluid Capacity18.5 gal
Hydraulic System Relief Valve Pressure5,910 psi

Engine

Engine specifications
Engine Model4D98E
Displacement203 in³
Power Measured @2,300 rpm
Net Power68.4 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab117 in
Wheelbase81 in
Overall Width7 in
Tail Swing Radius59 in
Upper Structure Clearance42 in

Transmission

Transmission specifications
Max Travel Speed18.7 mph
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth131 in
Max Cutting Height251 in
Max Reach Along Ground250 in
Max Loading Height189 in
Shipping Length of Unit231 in
Shipping Height of Unit156 in
Max Vertical Wall Dig Depth86 in
