Komatsu

WA200-5

Wheel Loader

Operating Weight
20,878 lb
Bucket Capacity - heaped
2.60 yd³
Gross Power
127.0 hp
Net Power
123.0 hp
All wheel loaders

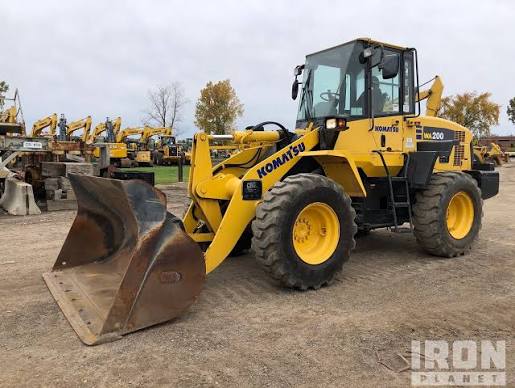

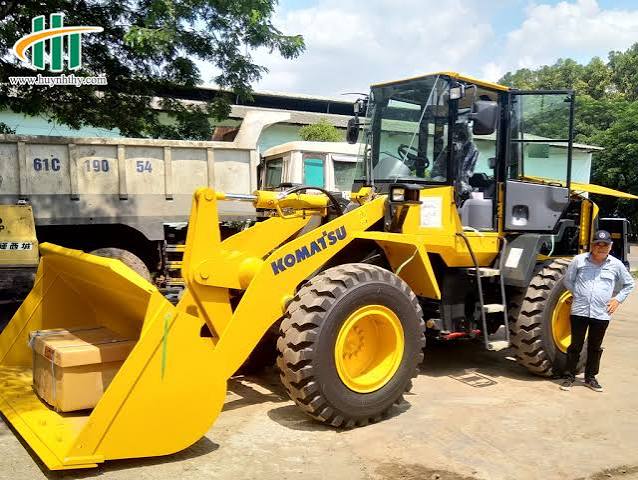

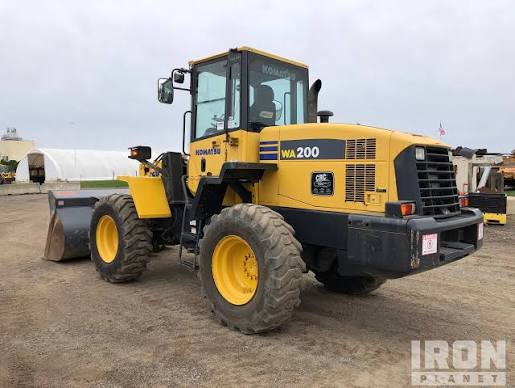

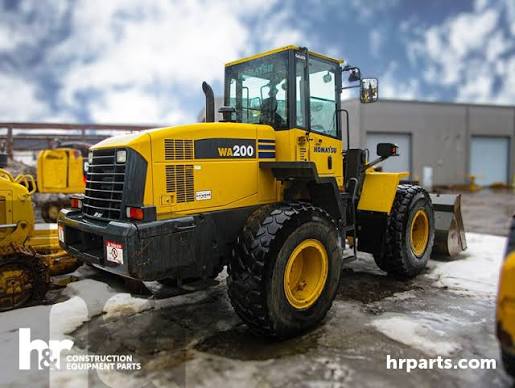

Komatsu WA200-5 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,878 lb
Fuel Capacity46.3 gal
Tire Size17.5-25-12PR (L2)
Hydraulic System Fluid Capacity15.4 gal
Engine Oil Fluid Capacity5.2 gal
Rear Axle Oscillation24 °
Front Axle/Diff Fluid Capacity4.8 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity4.5 gal
Transmission Fluid Capacity1.5 gal

Engine

Engine specifications
Engine ModelSAA6D102E-2
Displacement359 in³
Power Measured @2,000 rpm
Gross Power127.0 hp
Net Power123.0 hp
Number of Cylinders6
AspirationTurbocharge
Stroke5 in
Bore4 in
Emissions CertificationEPA Tier 2

Hydraulic System

Hydraulic System specifications
Raise Time5.9 s
Lower Time3.6 s
Dump Time1.4 s

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab124 in
Wheelbase113 in
Width Over Tires94 in
Reach at Max Lift and Dump40 in
Length with Bucket on Ground272 in
Hinge Pin - Max Height144 in

Transmission

Transmission specifications
Max Speed - Forward21.5 mph
Transmission TypeHydrostatic
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.60 yd³
Bucket Capacity - struck2.20 yd³
Dump Clearance at Max Raise109 in
Breakout Force20,944 lb
Bucket Width101 in
