Komatsu
New Holland
W110B
Wheel Loader
43 specifications

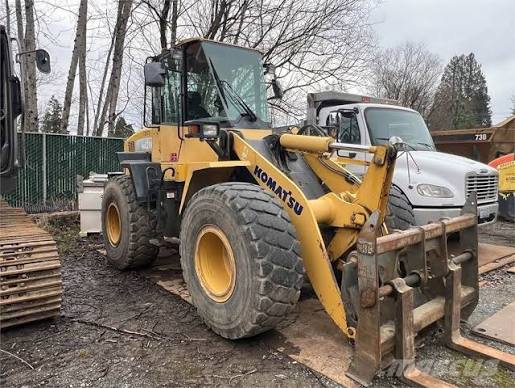

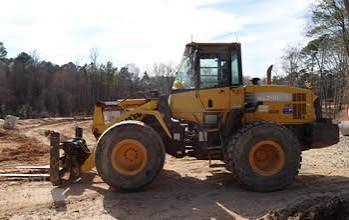

Komatsu
WA200-6
- Operating Weight
- 23,259 lb
- Bucket Capacity - heaped
- 2.60 yd³
- Gross Power
- 128.0 hp
- Net Power
- 126.0 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 23,259 lb |
|---|---|
| Fuel Capacity | 46.8 gal |
| Hydraulic System Fluid Capacity | 15.3 gal |
| Static Tipping Weight | 21,363 lb |
| Turning Radius | 462 in |
| Engine Oil Fluid Capacity | 4.1 gal |
| Front Axle/Diff Fluid Capacity | 4.8 gal |
| Rear Axle/Diff Fluid Capacity | 4.8 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Rated Bucket Capacity | 2.20 – 3.10 yd³ |
Engine
| Engine Model | SAA4D107E-1 |
|---|---|
| Displacement | 272 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 128.0 hp |
| Net Power | 126.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbo-charged |
Weights
| Operating Weight | 23,160 – 23,733 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 22.5 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 3.6 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Gear type pump |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 113 in |
| Width Over Tires | 97 in |
| Length with Bucket on Ground | 271 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 23.6 mph |
| Transmission Type | Hydrostatic 1 pump 2 motors with speed range select |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.60 yd³ |
|---|---|
| Bucket Capacity - struck | 2.30 yd³ |
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 20,944 lb |
| Bucket Width | 101 in |
