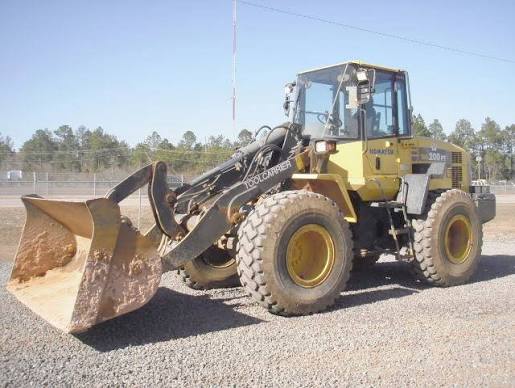

WA200PT-5

Specifications

45 data points

Operating Specifications specifications
Operating Weight	22,771 lb
Hydraulic System Fluid Capacity	17.7 gal
Static Tipping Weight	16,852 lb
Operating Voltage	24 V
Turning Radius	196 in
Engine Oil Fluid Capacity	5.2 gal
Rear Axle Oscillation	24 °
Alternator Supplied Amperage	60 A
Front Axle/Diff Fluid Capacity	4.8 gal
Rear Axle/Diff Fluid Capacity	4.8 gal
Cooling System Fluid Capacity	4.6 gal
Transmission Fluid Capacity	1.5 gal
Engine Oil Capacity	5.5 gal
Static Tipping Load - Bucket	2 lb
Front Diff Fluid Capacity	4.8 gal
Rear Diff Fluid Capacity	4.8 gal
Static Tipping Load - Forks	13,012 lb
Static Tipping Load - Material Handler	6,816 lb

Dimensions specifications
Height - Top of Cab	126 in
Wheelbase	113 in
Width Over Tires	98 in
Reach at Max Lift and Dump	32 in
Length with Bucket on Ground	302 in
Hinge Pin - Max Height	151 in
Length w/ Bucket on Ground	288 in
Dump Clearance at Max Lift	108 in
Reach at Max Height and Dump	42 in
Max Lift Height	146 in
Length with out Forks on Ground	302 in
