Komatsu
Tata Hitachi
TWL3036
Wheel Loader
41 specifications

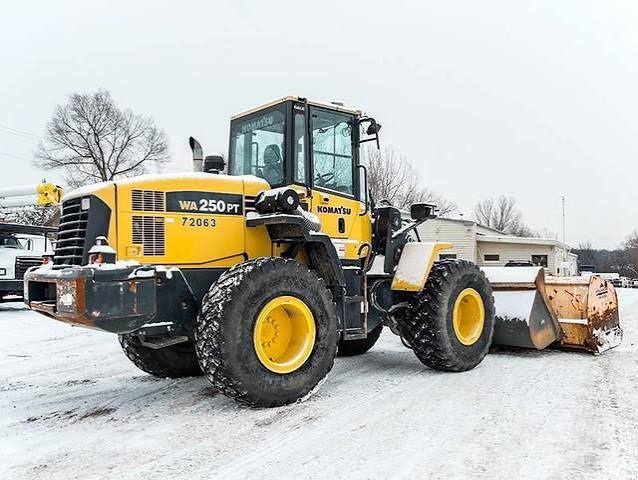

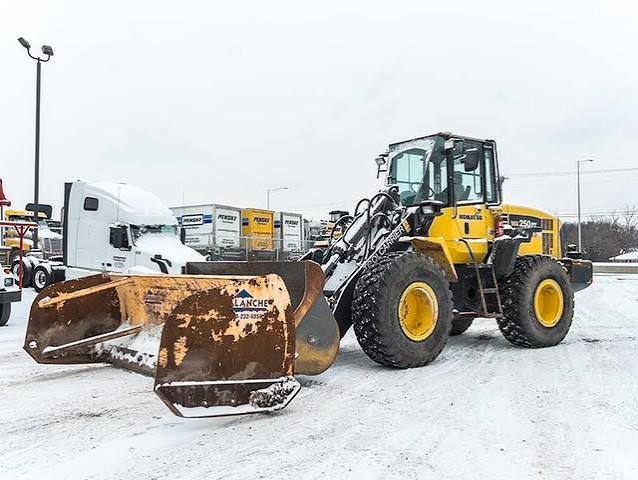

Komatsu
WA250PT-5
- Operating Weight
- 28,219 lb
- Bucket Capacity - heaped
- 2.69 yd³
- Gross Power
- 139.0 hp
- Net Power
- 134.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 28,219 lb |
|---|---|
| Hydraulic System Fluid Capacity | 17.7 gal |
| Static Tipping Weight | 23,078 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 5.2 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 4.8 gal |
| Rear Axle/Diff Fluid Capacity | 4.8 gal |
| Transmission Fluid Capacity | 1.9 gal |
| Engine Oil Capacity | 5.5 gal |
| Static Tipping Load - Bucket | 19,417 lb |
| Front Diff Fluid Capacity | 4.8 gal |
| Rear Diff Fluid Capacity | 4.8 gal |
| Static Tipping Load - Forks | 15,113 lb |
| Static Tipping Load - Material Handler | 26,857 lb |
Engine
| Power Measured @ | 2,000 rpm |
|---|---|
| Gross Power | 139.0 hp |
| Net Power | 134.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 43.1 gal/min |
|---|---|
| Raise Time | 6.3 s |
Dimensions
| Height - Top of Cab | 128 in |
|---|---|
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 287 in |
| Hinge Pin - Max Height | 156 in |
| Length w/ Bucket on Ground | 288 in |
| Reach at Max Height and Dump | 204 in |
| Dump Clearance at Max Lift | 115 in |
| Max Lift Height | 150 in |
| Length with out Forks on Ground | 318 in |
| Hook Reach at Max Lift - standard | 108 in |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 23.7 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Bucket Capacity - struck | 2.11 yd³ |
| Dump Clearance at Max Raise | 114 in |
| Bucket Width | 101 in |
