Komatsu
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

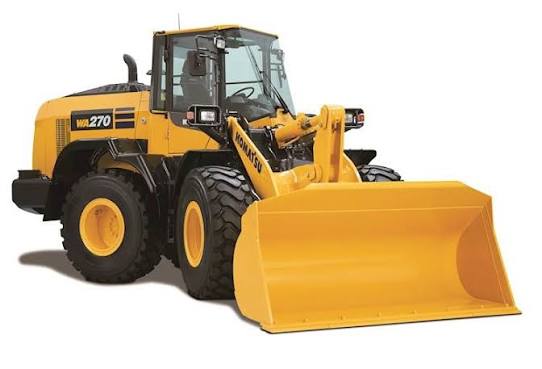

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Fuel Capacity | 49.2 gal |
|---|---|
| Hydraulic System Fluid Capacity | 20.7 gal |
| Engine Oil Fluid Capacity | 6.1 gal |
| Front Axle/Diff Fluid Capacity | 4.9 gal |
| Rear Axle/Diff Fluid Capacity | 4.8 gal |
| Cooling System Fluid Capacity | 7.4 gal |
| Rated Bucket Capacity | 3.00 yd³ |
Engine
| Engine Model | SAA6D107E-2 |
|---|---|
| Displacement | 408 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 154.3 hp |
| Net Power | 148.9 hp |
| Aspiration | Turbo-charged |
| Bore | 4 in |
| Stroke | 5 in |
Weights
| Operating Weight | 28,351 – 29,299 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 39.7 gal/min |
|---|---|
| Raise Time | 5.7 s |
| Lower Time | 3.2 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Hydraulic |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 115 in |
| Width Over Tires | 100 in |
| Reach at Max Lift and Dump | 32 in |
| Length with Bucket on Ground | 288 in |
| Hinge Pin - Max Height | 157 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 23.6 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Bucket Capacity - struck | 2.80 yd³ |
| Dump Clearance at Max Raise | 118 in |
| Breakout Force | 29,450 lb |
| Bucket Width | 101 in |
