Komatsu
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

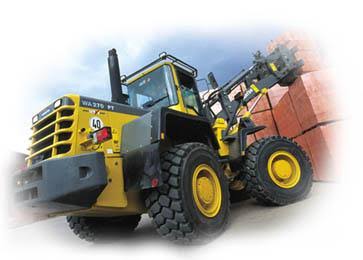

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 27,999 lb |
|---|---|
| Fuel Capacity | 48.9 gal |
| Tire Size | 20.5 R 25 |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Static Tipping Weight | 18,078 lb |
| Operating Voltage | 24 V |
| Turning Radius | 206 in |
| Engine Oil Fluid Capacity | 4.3 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 6.8 gal |
| Rear Axle/Diff Fluid Capacity | 6.8 gal |
| Cooling System Fluid Capacity | 14.8 gal |
| Transmission Fluid Capacity | 4.5 gal |
Engine
| Engine Model | S6D102 E1 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 141.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 46.3 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 2.7 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,046 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 115 in |
| Width Over Tires | 97 in |
| Reach at Max Lift and Dump | 53 in |
| Length with Bucket on Ground | 285 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 25.0 mph |
|---|---|
| Max Speed - Reverse | 16.2 mph |
| Transmission Type | fully automatic 4-speed full powershift with 'kickdown' |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Dump Clearance at Max Raise | 100 in |
| Breakout Force | 21,582 lb |
| Bucket Width | 100 in |
