Komatsu
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

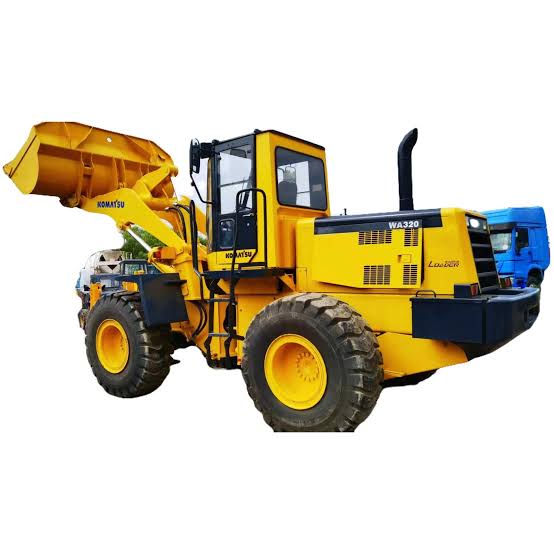

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 30,754 lb |
|---|---|
| Fuel Capacity | 58.4 gal |
| Tire Size | 20.5 R25 XHA LE |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Static Tipping Weight | 24,560 lb |
| Operating Voltage | 24 V |
| Turning Radius | 219 in |
| Engine Oil Fluid Capacity | 6.0 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 6.7 gal |
| Rear Axle/Diff Fluid Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 15.9 gal |
Engine
| Engine Model | S6D114 E-1 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,350 rpm |
| Gross Power | 166.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 62.7 gal/min |
|---|---|
| Raise Time | 5.1 s |
| Lower Time | 3.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,046 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 120 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 291 in |
| Hinge Pin - Max Height | 154 in |
Transmission
| Max Speed - Forward | 23.4 mph |
|---|---|
| Max Speed - Reverse | 24.5 mph |
| Transmission Type | fully automatic 4 speed full power shift with 'kickdown' and 'gear-hold' |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.51 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 28,326 lb |
| Bucket Width | 108 in |
