KomatsuZettelmeyer
ZL5001
Wheel Loader
35 specifications
1 / 5

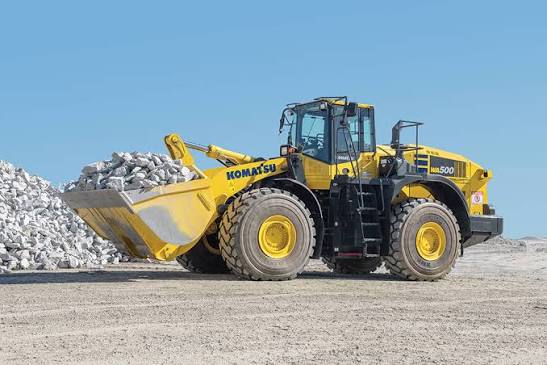

Image 1 of 5
Specifications
14 data points
Operating Specifications
| Rated Bucket Capacity | 5.90 – 8.20 yd³ |
|---|
Engine
| Net Power | 353.0 hp |
|---|
Weights
| Operating Weight | 76,897 – 77,856 lb |
|---|
Bucket
| Dump Clearance at Max Raise | 130 in |
|---|
General Specifications
| Operating Weight | 76,897 - 77,856 (34,880 - 35,315) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 78,272 - 78,782 (35,504 - 35,735) — Starting 2025 Model Year |
| Bucket Capacity | 5.9 - 8.2 (4.5 - 6.3) — Starting 2024 Model Year |
| Bucket Capacity cu. yd. (cu m) | 5.9 - 8.2 (4.5 - 6.3) — Starting 2025 Model Year |
| Engine type | SAA6D140E-7 — Starting 2019 Model Year |
| Engine Power | 353 (263) — Starting 2019 Model Year |
| Max Dump Height | 10.8 (3.3) — Starting 2019 Model Year |
| Max Dump Height ft.( m) | 10.9 (3.3) — Starting 2026 Model Year |
| OperatingWeight lbs. (kg) | 78,273 - 78,782 (35,504 - 35,735) — Starting 2026 Model Year |
| Engine Power Net hp (kW) | 353 (263) — Starting 2025 Model Year |
