Komatsu

WB150AWS-2N

Backhoe Loader

Bucket Capacity
1.29 yd³
Max Speed
24.9 mph
Gross Power
100.0 hp
Net Power
94.0 hp
All backhoe loaders

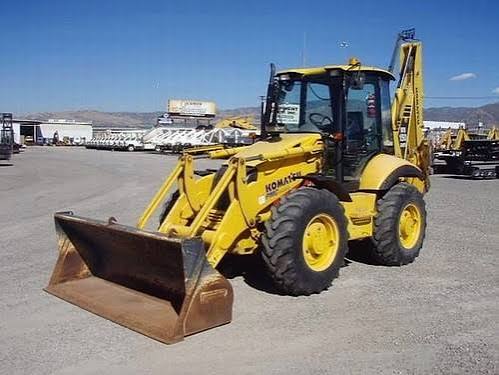

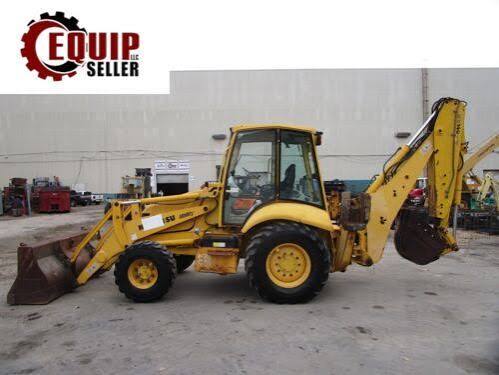

Komatsu WB150AWS-2N Backhoe Loader
1 / 5
Image 1 of 5
Image: makana.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Hydraulic System Fluid Capacity24.4 gal
Cooling System Fluid Capacity3.7 gal
Operating Voltage12 V
Oil System Fluid Capacity2.1 gal
Alternator Supplied Amperage80 A
Turning Radius170 in
Max Weight19,731 lb
Rear Axle Fluid Capacity4.7 gal
Front Axle Fluid Capacity2.3 gal

Engine

Engine specifications
Engine ModelS4D106-2SFA
Displacement269 in³
Power Measured @2,200 rpm
Gross Power100.0 hp
Net Power94.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,400 rpm
Engine MakeKomatsu
Bore4 in
Stroke5 in
Net Max Torque257 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.6 gal/min
Relief Valve Pressure3,200 psi
Pump TypeClosed center Load Sensing System

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase86 in
Transport Width97 in
Transport Length287 in
Height to Top of Suspended Cab114 in
Rear Tread Range77 in
Front Tread Range77 in
Dump angle45 °

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears4
Number of Reverse Gears3
Transmission TypePower shift

Backhoe

Backhoe specifications
Dig Depth180 in
Dig Depth - Extended221 in
Bucket Dig Force9,350 lb
Reach at Load Height - Extended150 in
Load Height113 in

Loader

Loader specifications
Bucket Capacity1.29 yd³
Clearance at Max Dump Height108 in
Bucket Breakout Force13,825 lb
Bucket Width93 in
Reach at Max Dump Height113 in
Dig Depth4 in
