Komatsu

WB93R-5

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
24.9 mph
Gross Power
99.3 hp
All backhoe loaders

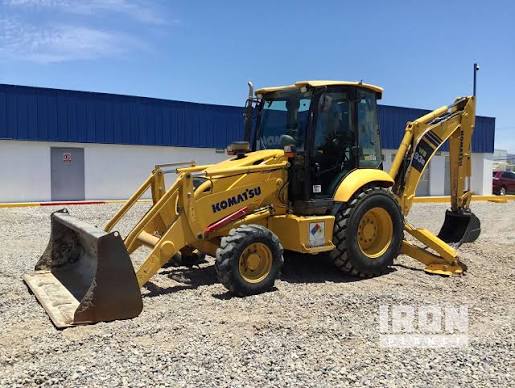

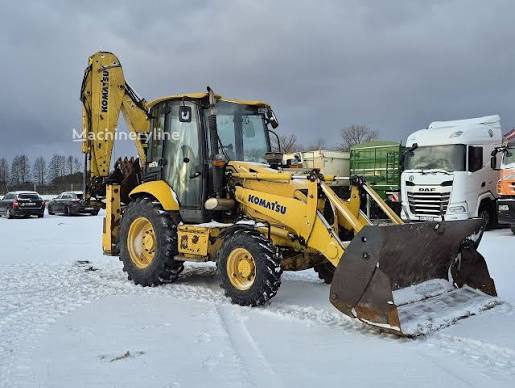

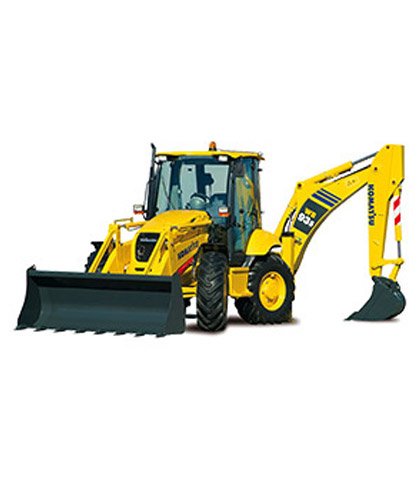

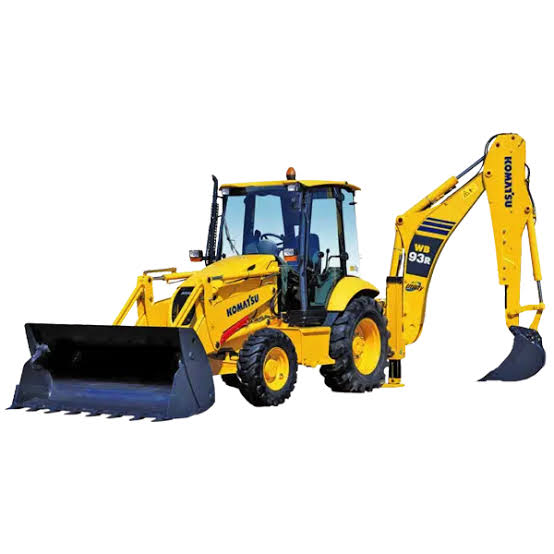

Komatsu WB93R-5 Backhoe Loader
1 / 5
Image 1 of 5
Image: products.unitedtractors.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd16,447 lb
Fuel Capacity39.7 gal

Engine

Engine specifications
Engine ModelKomatsu S4D104E-3
Displacement273,692 in³
Gross Power99.3 hp
Number of Cylinders4
Aspirationturbo-inter cooled
Bore4 in
Stroke5 in
Engine Typevertical 4-cycle water-cooled diesel engine

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.6 gal/min
Relief Valve Pressure3,626 psi

Dimensions

Dimensions specifications
Transport Width93 in
Transport Length233 in

Transmission

Transmission specifications
Max Speed24.9 mph
Max Speed - Reverse24.9 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepower shuttle

Backhoe

Backhoe specifications
Dig Depth179 in
Reach From Swivel227 in
Dig Depth - Extended239 in
Load Height - Extended193 in
Bucket Dig Force13,444 lb
Reach From Swivel - Extended265 in
Load Height165 in

Loader

Loader specifications
Bucket Capacity1.40 yd³
Lift Capacity3,307 lb
Clearance at Max Dump Height108 in
Bucket Width91 in
