Komatsu
New Holland

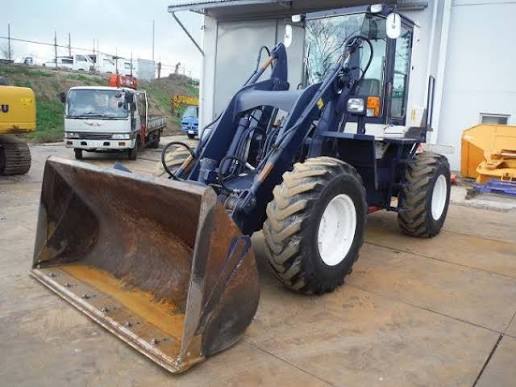

W110B
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 19,037 lb |
|---|---|
| Fuel Capacity | 35.2 gal |
| Tire Size | 16.9-24-10PR |
| Turning Radius | 230 in |
Engine
| Engine Model | S4D102E |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 83.9 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 115 in |
| Width Over Tires | 89 in |
| Reach at Max Lift and Dump | 59 in |
| Length with Bucket on Ground | 256 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 18.7 mph |
|---|---|
| Max Speed - Reverse | 19.0 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 1.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 125 in |
| Bucket Width | 95 in |
