Kubota

B7510HSD

Tractor

Operating Weight
1,367 lb
Displacement
61 in³
Power Measured @
2,600 rpm
Gross Power
21.0 hp
All tractors

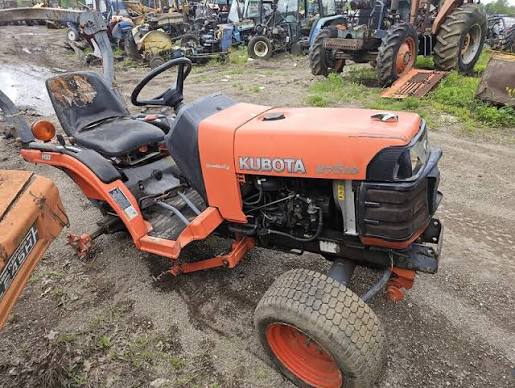

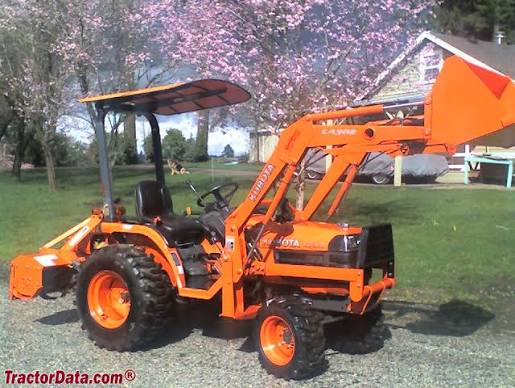

Kubota B7510HSD Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,367 lb
Fuel Capacity5.3 gal
3 Point Hitch Lift Capacity @ 24 inches1,058 lb
3 Point Hitch Typecat. I
Turning Radius79 in
Cooling System Fluid Capacity1.1 gal
Engine Oil Capacity0.8 gal

Engine

Engine specifications
Engine ModelD1005-E-D16
Displacement61 in³
Power Measured @2,600 rpm
Gross Power21.0 hp
Number of Cylinders3
AspirationE-TVCS liquid cooled
PTO Power16.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity7.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase60 in
Overall Length8 in
Tire Sizefront 6-12 rear 9.5-16
Width Outside Frame43 in

Transmission

Transmission specifications
Max Speed9.7 mph
Number of Forward Gears2
Transmission TypeHST 2 range
Number of Reverse Gears2

Axles

Axles specifications
Final Drivespur gear
