Kubota

BX2660

Tractor

Operating Weight
1,389 lb
Displacement
61 in³
Power Measured @
3,200 rpm
Gross Power
25.5 hp
All tractors

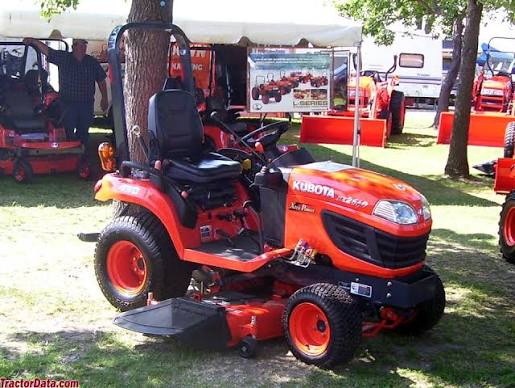

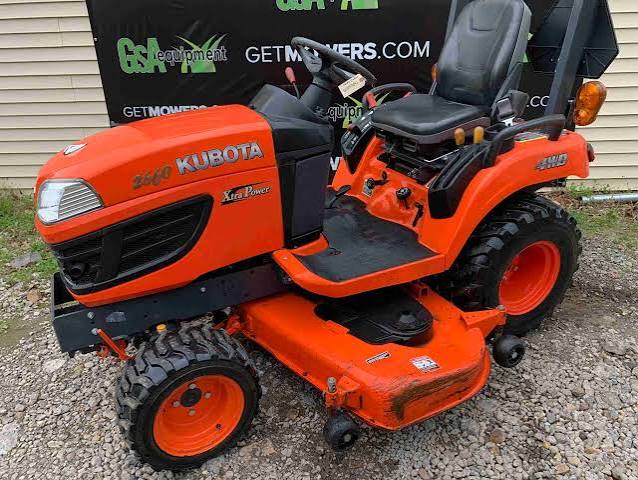

Kubota BX2660 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,389 lb
Fuel Capacity6.7 gal
3 Point Hitch Lift Capacity @ 24 inches661 lb
3 Point Hitch Typecat. I
Turning Radius91 in

Engine

Engine specifications
Engine ModelD1005
Displacement61 in³
Power Measured @3,200 rpm
Gross Power25.5 hp
Number of Cylinders3
PTO Power19.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.4 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab71 in
Wheelbase55 in
Overall Length8 in
Tire Sizefront 18x8.50-10 turf rear 26x12.00-12 turf
Width Outside Frame46 in

Transmission

Transmission specifications
Max Speed8.4 mph
Number of Forward Gears2
Transmission TypeHST high low gear shift
Number of Reverse Gears2

Production

Production specifications
SeriesBX60 Series
Years Manufactured2,008 – 2,013
