Kubota

KX41-3

Mini Excavator

Operating Weight
3,693 lb
Max Digging Depth
95 in
Net Power
17.0 hp
All mini excavators

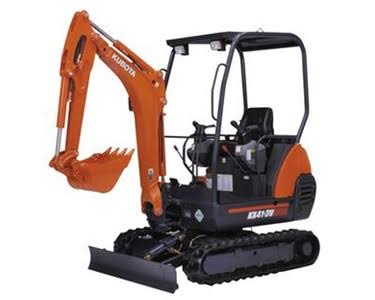

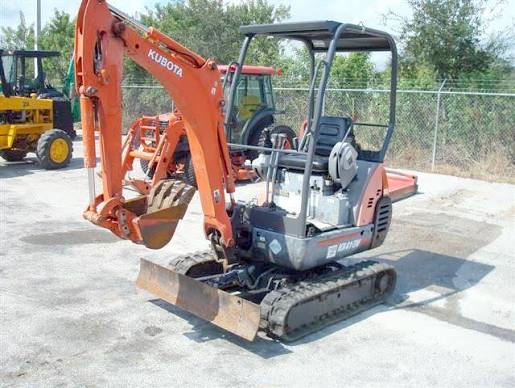

Kubota KX41-3 Mini Excavator
1 / 5
Image 1 of 5
Image: colemanequip.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,693 lb
Fuel Capacity5.6 gal
Hydraulic System Fluid Capacity3.7 gal

Engine

Engine specifications
Engine ModelD902
Displacement55 in³
Power Measured @2,300 rpm
Net Power17.0 hp

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab90 in
Width to Outside of Tracks52 in
Digging Depth94 in
Digging Reach94 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.6 mph
Drawbar Pull2,899 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth95 in
Max Reach Along Ground152 in
Max Vertical Wall Digging Depth76 in
Max Loading Height97 in
Shipping Length of Unit144 in
Max Cutting Height141 in
Shipping Height of Unit90 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
