Kubota
L5030HST
- Operating Weight
- 4,090 lb
- Displacement
- 149 in³
- Power Measured @
- 2,700 rpm
- Gross Power
- 52.2 hp
1 / 5

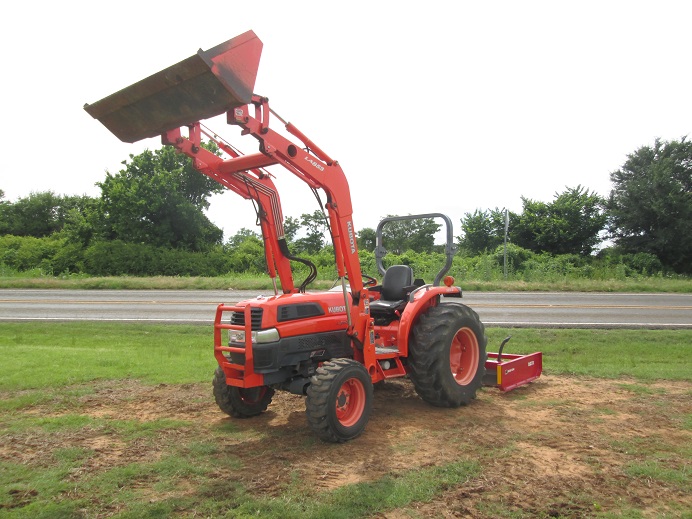

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 4,090 lb |
|---|---|
| Fuel Capacity | 11.4 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,976 lb |
| 3 Point Hitch Type | Cat. I & II |
| Turning Radius | 119 in |
| Alternator Supplied Amperage | 60 A |
| Operating Voltage | 12 V |
Engine
| Engine Model | L5030 HST |
|---|---|
| Displacement | 149 in³ |
| Power Measured @ | 2,700 rpm |
| Gross Power | 52.2 hp |
| Net Power | 50.0 hp |
| Number of Cylinders | 4 |
| Aspiration | E-TVCS indirect injection |
| PTO Power | 42.5 hp |
Hydraulic System
| Pump Flow Capacity | 14.7 gal/min |
|---|
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 90 in |
| Wheelbase | 76 in |
| Overall Length | 11 in |
| Tire Size | front 9.5-16 rear 14.9-26 |
| Width Outside Frame | 69 in |
Transmission
| Max Speed | 16.3 mph |
|---|---|
| Number of Forward Gears | 3 |
| Transmission Type | HST 3 ranges |
| Number of Reverse Gears | 3 |
