Kubota

M6-131DTCC-F

Tractor

Operating Weight
11,387 lb
Displacement
374 in³
Power Measured @
2,200 rpm
Gross Power
131.6 hp
All tractors

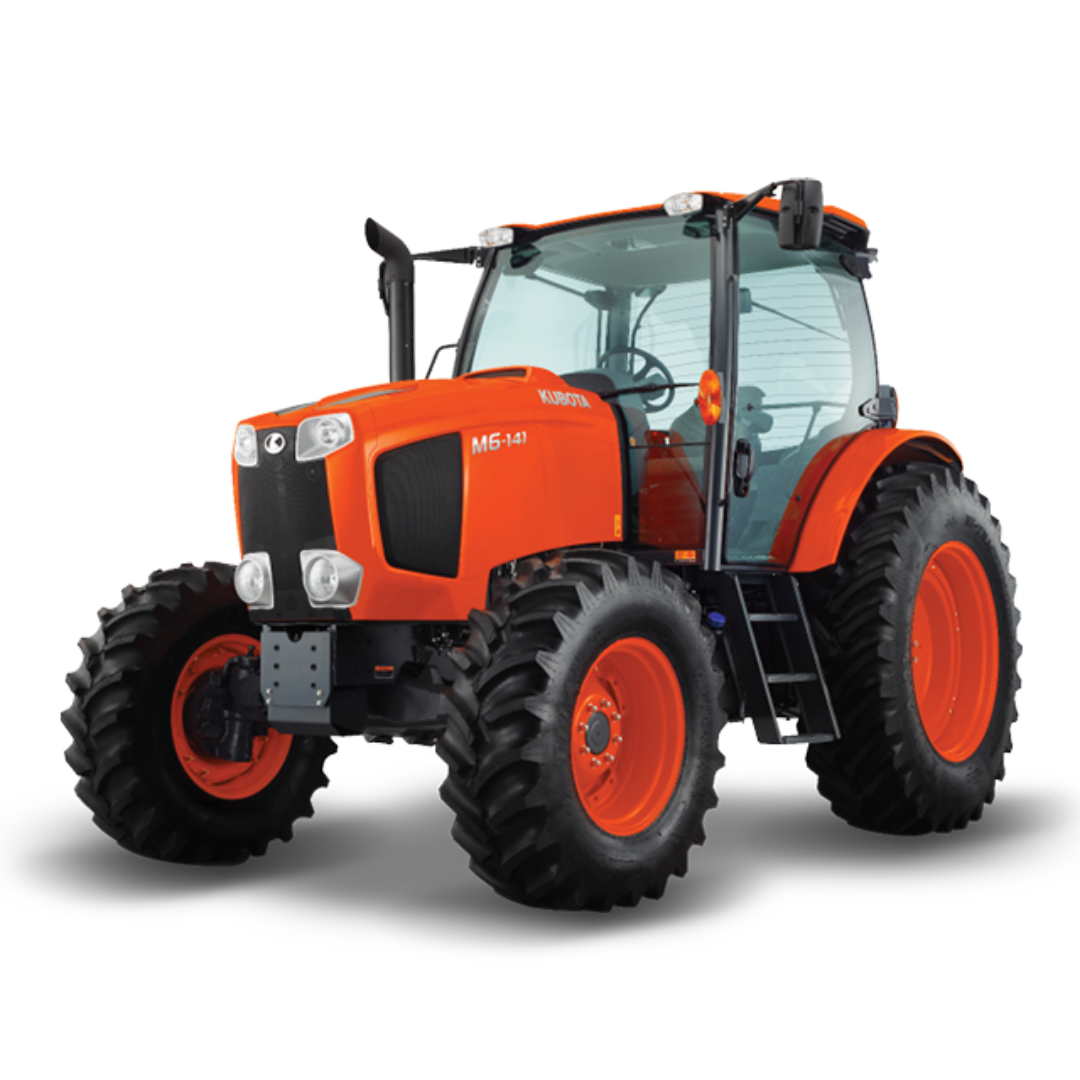

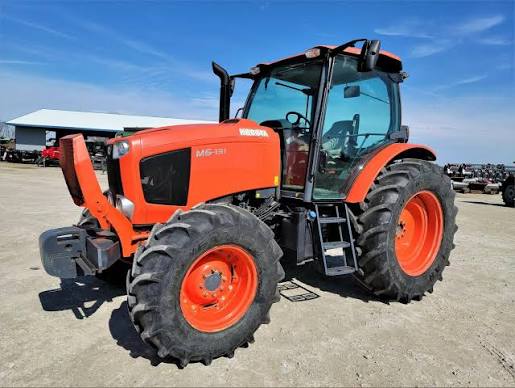

Kubota M6-131DTCC-F Tractor
1 / 5
Image 1 of 5
Image: rentals.fortequipment.ca

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,387 lb
3 Point Hitch Lift Capacity @ 24 inches6,834 lb
3 Point Hitch TypeCategory 2

Engine

Engine specifications
Engine ModelV6108-TIEF4
Displacement374 in³
Power Measured @2,200 rpm
Gross Power131.6 hp
Net Power123.2 hp
Number of Cylinders4
AspirationTurbocharger with intercooler
Engine MakeKUBOTA
PTO Power104.0 hp
Bore5 in
Stroke6 in
Engine TypeDirect Injection
Alternator130 A
Air cleaner10 Dry dual-element
Battery12V 160Ah at 20hours 1090CCA
Model NameM6-131DTCC-F

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.4 gal/min
system pressure2,843 psi
Hydraulic systemElectronic draft control

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase107 in
Overall Length172 in
Overall Width86 in
Overall Height114 in
Rear Tread Range82 in
Front Tread Range74 in
Turning radius without brakes 1166 in

Transmission

Transmission specifications
Max Speed24.3 mph
Brake typeHydraulically operated wet disc brakes

Fluid Capacities

Fluid Capacities specifications
Fuel Tank50.2 gal
Engine Oil3.9 gal
Transmission4.0 gal
Engine coolant3.9 gal
Diesel exhaust fluid (DEF) tank4.3 gal

Tires & Wheels

Tires & Wheels specifications
TiresFront - 14.9 R24 Rear - 18.4 R38

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTO6 splines
Mid- PTO21 splines
PTO speed rear540 rpm
PTO Speed Mid1,000 rpm
PTOLive-independent PTO
