Kubota

M6-141DTSCC-F

Tractor

Operating Weight
10,946 lb
Displacement
374 in³
Power Measured @
2,200 rpm
Gross Power
141.4 hp
All tractors

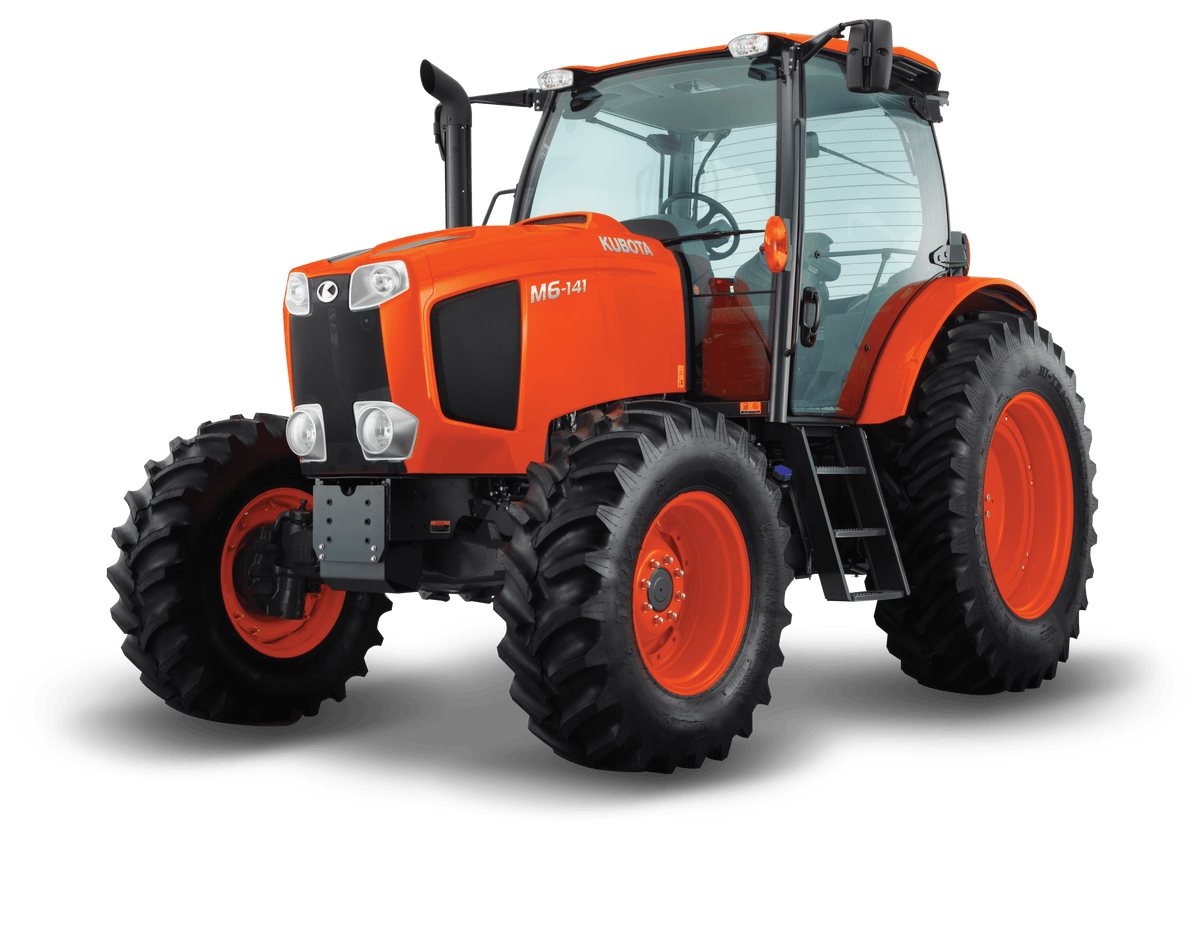

Kubota M6-141DTSCC-F Tractor
1 / 5
Image 1 of 5
Image: grandeprairiekubota.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,946 lb
3 Point Hitch Lift Capacity @ 24 inches6,834 lb
3 Point Hitch TypeTelescopic lower link ends telescopic stabilizers
DEF tank capacity4.2 gal

Engine

Engine specifications
Engine ModelV-3800-CR-TIER4
Displacement374 in³
Power Measured @2,200 rpm
Gross Power141.4 hp
Net Power133.0 hp
Number of Cylinders4
AspirationTurbocharger with intercooler
Engine MakeKubota
PTO Power114.0 hp
Stroke6 in
Bore5 in
Engine TypeCommon Rail System direct injection liquid-cooled
Alternator130 A
Air cleaner10"" Dry dual-element
Battery12 V 160Ah at 20 hours 1090 CCA
Model NameM6-141DTSCC-F

Hydraulic System

Hydraulic System specifications
Number of Remote Control Valves—

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase107 in
Overall Length172 in
Overall Width86 in
Height - Top of ROPS/FOPS114 in
Turning radius without brakes 1166 in

Transmission

Transmission specifications
Max Speed24.3 mph
Number of Forward Gears24
Number of Reverse Gears24

Tires & Wheels

Tires & Wheels specifications
TiresFront - 14.9 R24 Rear - 18.4 R38

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeLive-independent PTO hydraulically operated wet clutch
