Kubota

M7-151P-KVT

Tractor

Operating Weight
15,097 lb
Displacement
374 in³
Power Measured @
2,200 rpm
Gross Power
148.0 hp
All tractors

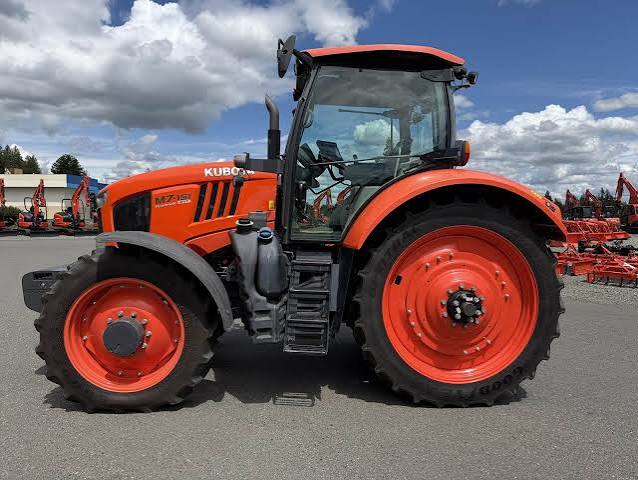

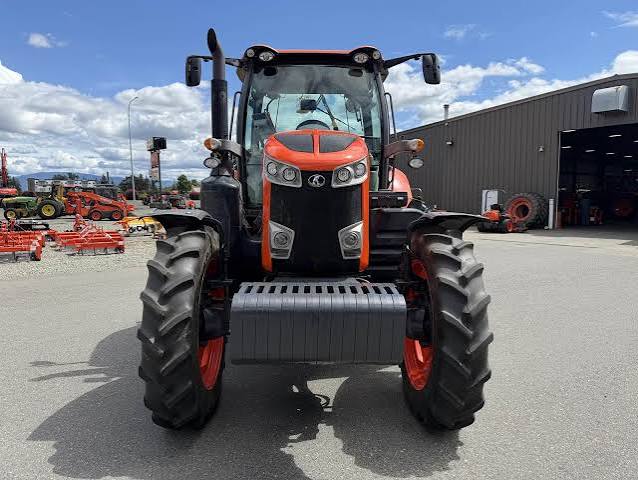

Kubota M7-151P-KVT Tractor
1 / 5
Image 1 of 5
Image: kdg.kubota-eu.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,097 lb
3 Point Hitch Lift Capacity @ 24 inches11,795 lb
3 Point Hitch TypeCategory 3/3N

Engine

Engine specifications
Engine ModelKUBOTA V6108-CR-TIEF4
Displacement374 in³
Power Measured @2,200 rpm
Gross Power148.0 hp
Number of Cylinders4
AspirationTurbocharger with intercooler
Torque Measured @1,400 rpm
Max Torque493 lb-ft
Engine MakeKUBOTA
PTO Power120.1 hp
Stroke6 in
Bore5 in
Engine TypeDirect Injection
Alternator130 A
Air cleaner10 Dry dual-element
Battery174Ah (20 HR)/1400A
Model NameM7-151

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
system pressure2,901 psi
Hydraulic systemElectronic draft control

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase108 in
Overall Length188 in
Overall Width110 in
Overall Height120 in
Rear Tread Range73 in
Front Tread Range75 in
Turning radius without brakes 1158 in

Transmission

Transmission specifications
Max Speed25.0 mph
Brake typeHydraulically operated wet disc brakes

Fluid Capacities

Fluid Capacities specifications
Fuel Tank87.2 gal
Engine Oil5.9 gal
Engine coolant6.4 gal
Diesel exhaust fluid (DEF) tank10.1 gal

Tires & Wheels

Tires & Wheels specifications
TiresFront - 14.9R28 Rear - 18.4R38

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTOSpeed - 540 / 540E / 1000 / 1000E - HP
PTOFront speed - 1000 - HP
