Kubota

M7-171P-PS

Tractor

Operating Weight
15,097 lb
Displacement
374 in³
Power Measured @
2,200 rpm
Gross Power
168.0 hp
All tractors

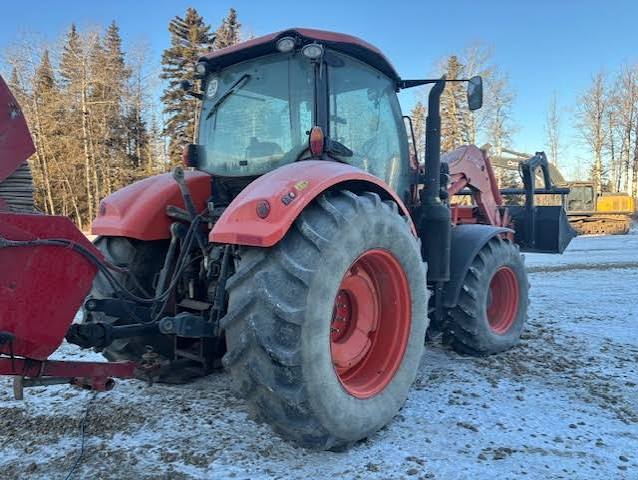

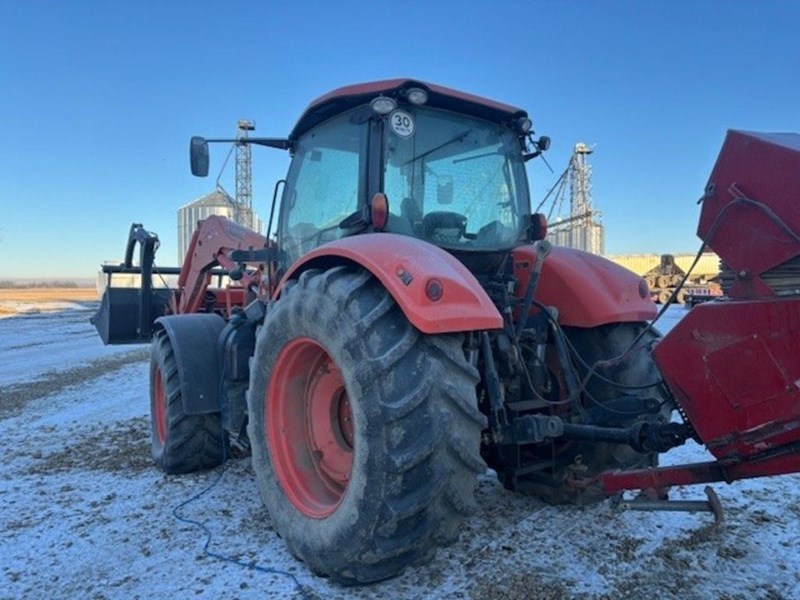

Kubota M7-171P-PS Tractor
1 / 5
Image 1 of 5
Image: equipmentlocator.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,097 lb
3 Point Hitch Lift Capacity @ 24 inches11,795 lb
3 Point Hitch TypeTelescopic lower link Category 3 / 3N
DEF tank capacity10.0 gal

Engine

Engine specifications
Displacement374 in³
Power Measured @2,200 rpm
Gross Power168.0 hp
Number of Cylinders4
AspirationTurbocharger with intercooler
Engine MakeKubota
Stroke6 in
Bore5 in
Engine TypeDirect Injection
Alternator200 A
Battery174 Ah (20 hr) / 1400A
Model NameM7-171

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Number of Remote Control Valves—

Dimensions

Dimensions specifications
Wheelbase108 in
Overall Length188 in
Overall Width110 in
Height - Top of ROPS/FOPS120 in

Transmission

Transmission specifications
Max Speed25.0 mph
Number of Forward Gears24
Transmission TypeCVT
Number of Reverse Gears24

Tires & Wheels

Tires & Wheels specifications
TiresFront - 14.9 R24 Rear - 18.4 R38

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) Type110� bar axle
PTO horsepower140.0 hp
