Kubota

SVL75-2

Compact Track Loader

Operating Weight
9,359 lb
Gross Power
74.0 hp
All compact track loaders

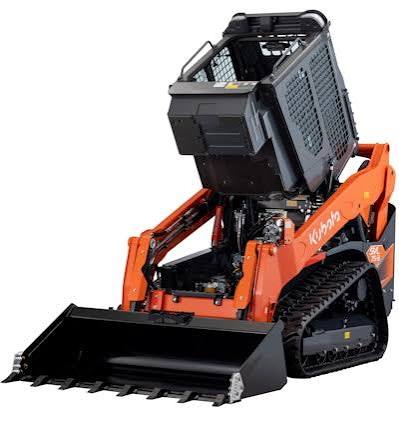

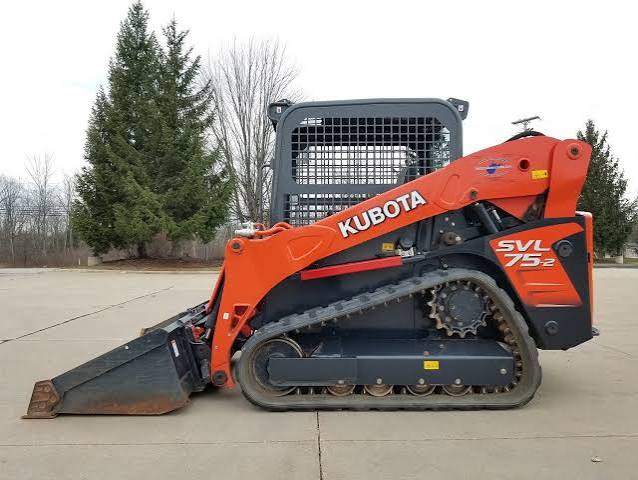

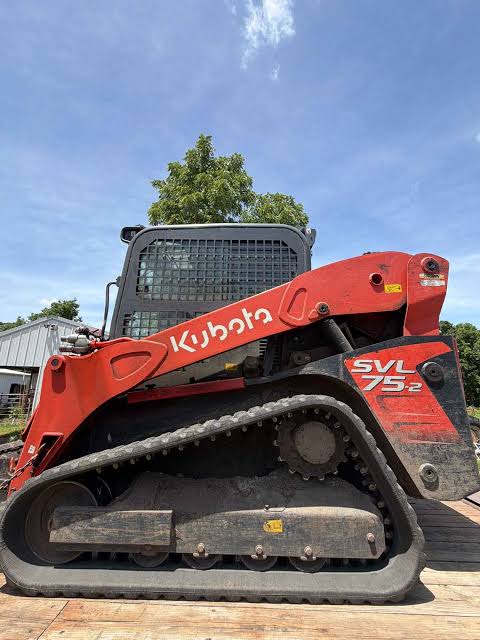

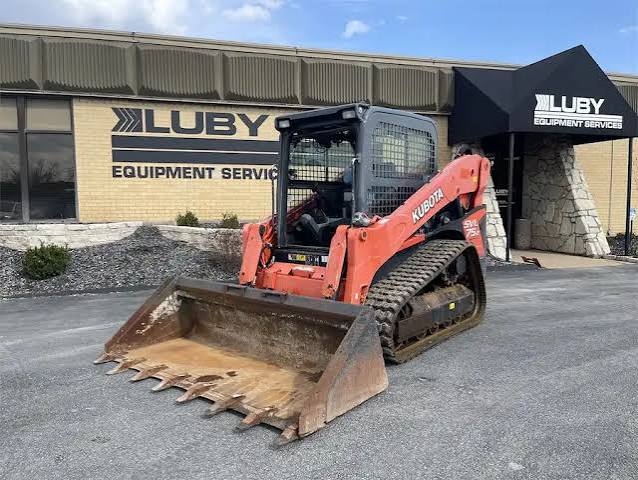

Kubota SVL75-2 Compact Track Loader
1 / 5
Image 1 of 5
Image: blulineequipment.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,359 lb
Fuel Capacity24.6 gal
Hydraulic System Fluid Capacity15.9 gal

Engine

Engine specifications
Engine ModelV3800CR-TIE F4
Gross Power74.0 hp
Number of Cylinders4
AspirationTurbocharged
Engine MakeKubota
Model NameSVL75-2HFWC

Hydraulic System

Hydraulic System specifications
Pump Flow17.4 gal/min

Transmission

Transmission specifications
Max Travel Speed7.1 mph
Min Travel Speed4.7 mph

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Length of Track on Ground57 in
Width of Track13 in
Number of Track Rollers per Side4

Fluid Capacities

Fluid Capacities specifications
Hydraulic oil tank9.2 gal

Loader

Loader specifications
Tipping Angle6,570 °
Operating Width68 in
Operating Load Rating2,300 lb
Bucket Breakout Force6,204 lb
Lift arm pathVertical
Lift arm Breakout force4,766 lb
