Kubota

SVL90-2

Compact Track Loader

Operating Weight
11,299 lb
Max Speed - high range
7.3 mph
Displacement
230 in³
Gross Power
92.0 hp
All compact track loaders

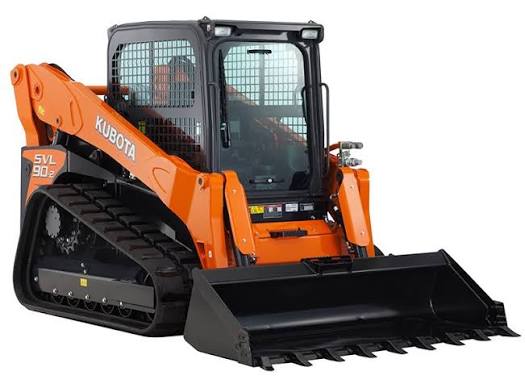

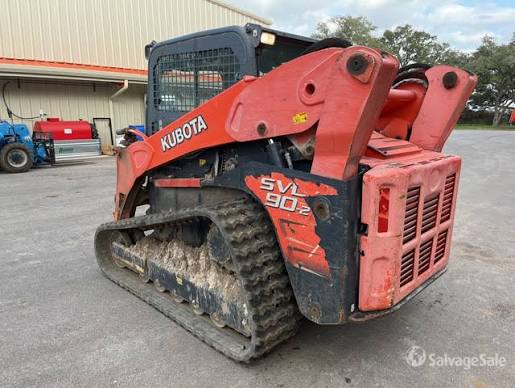

Kubota SVL90-2 Compact Track Loader
1 / 5
Image 1 of 5
Image: kubota-gear.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,299 lb
Max Speed - high range7.3 mph
Max Speed - low range5.0 mph
Fuel Capacity29.9 gal
Hydraulic System Fluid Capacity18.0 gal

Engine

Engine specifications
Engine ModelV3800-CR-T
Displacement230 in³
Power Measured @2,400 rpm
Gross Power92.0 hp
Number of Cylinders4
AspirationTurbochar
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow25.1 gal/min
Relief Valve Pressure3,555 psi
Auxiliary hydraulic flow25.1 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab84 in
Overall Width77 in
Reach at Max Lift and Dump41 in
Width Over Tracks18 in
Length with Bucket149 in
Turning Radius from Center - machine rear114 in
Length - without Bucket118 in
Dump angle43 °
Bucket hinge pin129 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground66 in
Number of Track Rollers per Side5
Track Gauge60 in

Loader

Loader specifications
Operating Load3,009 lb
Breakout Force—
Tipping Load8,598 lb
Bucket Breakout Force7,961 lb
