Kubota

SVL95-2

Compact Track Loader

Operating Weight
11,574 lb
Displacement
230 in³
Gross Power
96.0 hp
All compact track loaders

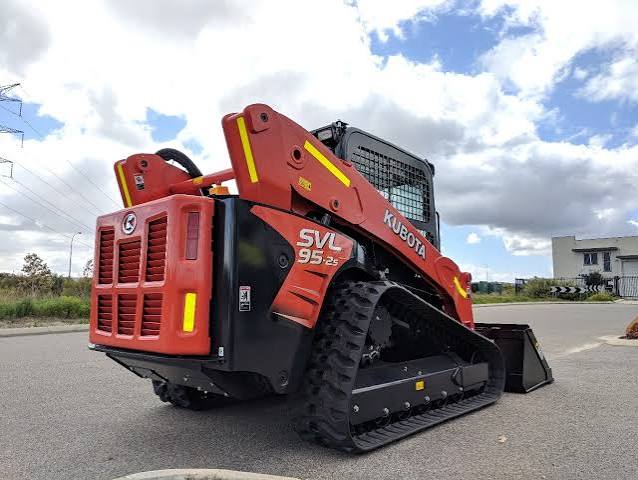

Kubota SVL95-2 Compact Track Loader
1 / 5
Image 1 of 5
Image: bcrentals.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,574 lb
Fuel Capacity28.8 gal
Hydraulic System Fluid Capacity10.1 gal

Engine

Engine specifications
Engine ModelV3800CR-TIE F4
Displacement230 in³
Power Measured @2,400 rpm
Gross Power96.0 hp
Number of Cylinders4
AspirationTurbocharged
Engine MakeKubota
Stroke5 in
Bore4 in
Engine TypeDiesel
Model NameSVL95-2SHFC
FuelDiesel

Hydraulic System

Hydraulic System specifications
Pump Flow40.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab84 in
Overall Width78 in
Width Over Tracks18 in
Angle of departure31 °
Length - Track on Ground66 in

Transmission

Transmission specifications
Max Travel Speed7.3 mph
Min Travel Speed5.0 mph

Loader

Loader specifications
Tipping Angle3,200 °
Operating Width80 in
Operating Load Rating3,200 lb
Bucket Breakout Force7,961 lb
Lift arm pathVertical
