TWL3036
Wheel Loader
41 specifications
1 / 5

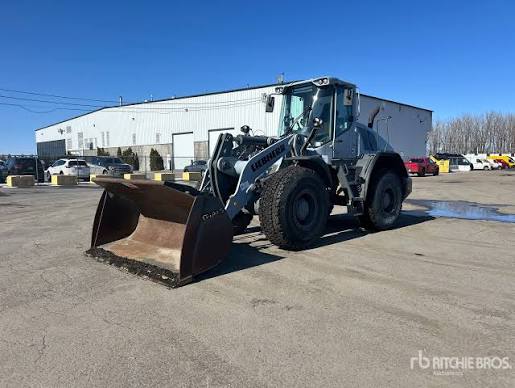

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 27,029 lb |
|---|---|
| Fuel Capacity | 54.2 gal |
| Tire Size | 20.5R25 L3 |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Static Tipping Weight | 22,399 lb |
| Operating Voltage | 24 V |
| Turning Radius | 241 in |
| Engine Oil Fluid Capacity | 5.4 gal |
| Rear Axle Oscillation | 12 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 4.3 gal |
| Rear Axle/Diff Fluid Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 10.0 gal |
| Transmission Fluid Capacity | 1.0 gal |
Engine
| Engine Model | 4045HFL93 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 154.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Inline engine water-cooled exhaust-turbo charged with intercooler |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 454 lb-ft |
| Stroke | 5 in |
| Bore | 4 in |
| Air cleaner | Dry air filter with main and safety element pre-cleaner service indicator on the display |
Hydraulic System
| Pump Flow Capacity | 45.0 gal/min |
|---|---|
| Raise Time | 5.3 s |
| Lower Time | 4.0 s |
| Dump Time | 1.6 s |
| Relief Valve Setting | 4,351 psi |
| Pump Type | Load-Sensing vaiable axial piston pump with output control and pressure cutoff |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 119 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 288 in |
| Hinge Pin - Max Height | 155 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Transmission Type | Stepless hydrostatic travel drive |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 25,180 lb |
| Bucket Width | 98 in |
