Liebherr
Tata Hitachi
TWL3036

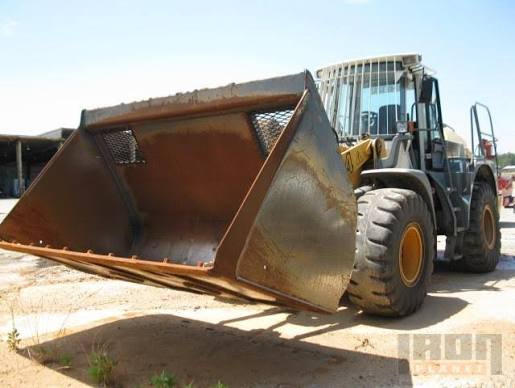

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 35,054 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Tire Size | 23.5 R 25 Michelin XLD-D2 L5 |
| Hydraulic System Fluid Capacity | 30.4 gal |
| Static Tipping Weight | 31,240 lb |
| Operating Voltage | 24 V |
| Turning Radius | 246 in |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | D 924 T-E A2 |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 165.0 hp |
| Number of Cylinders | 4 |
| Aspiration | in-line engine water-cooled exhaust turbo-charged |
Hydraulic System
| Pump Flow Capacity | 60.8 gal/min |
|---|---|
| Relief Valve Setting | 4,206 psi |
| Pump Type | Load sensing variable axial piston pump |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 125 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 315 in |
| Hinge Pin - Max Height | 155 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Transmission Type | hydrostatic 2plus2 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
| Breakout Force | 30,349 lb |
| Bucket Width | 107 in |
