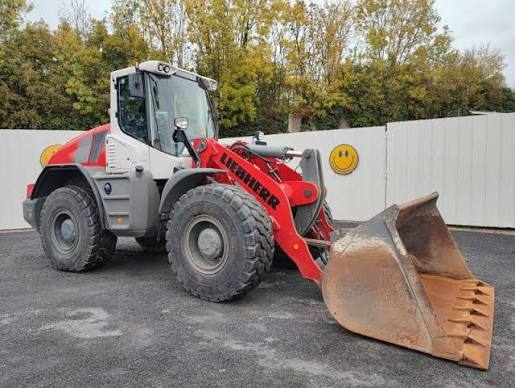

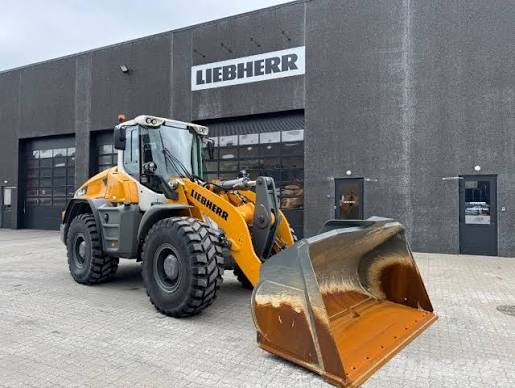

Liebherr
L546
- Operating Weight
- 31,305 lb
- Bucket Capacity - heaped
- 3.30 yd³
- Gross Power
- 165.0 hp
- Net Power
- 162.0 hp
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 31,305 lb |
|---|---|
| Fuel Capacity | 54.2 gal |
| Tire Size | 20.5R25 L3 |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Static Tipping Weight | 23,150 lb |
| Turning Radius | 239 in |
| Engine Oil Fluid Capacity | 5.8 gal |
| Front Axle/Diff Fluid Capacity | 5.0 gal |
| Rear Axle/Diff Fluid Capacity | 5.0 gal |
| Cooling System Fluid Capacity | 8.2 gal |
| Transmission Fluid Capacity | 0.7 gal |
| Hydraulic Fluid Capacity | 25.1 gal |
Engine
| Engine Model | 4045HLC09 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 165.0 hp |
| Net Power | 162.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Water-cooled turbocharged in-line engine with� cooled exhaust gas recirculation exhaust after-treatment with a closed diesel particle filter system and SCR technology |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 503 lb-ft |
| Bore | 4 in |
| Stroke | 5 in |
| Air cleaner | Dry type filter with main and safety element pre-cleaner service indicator on the Liebherr display |
| Fuel injection | Electronic Common Rail high-pressure injection |
Hydraulic System
| Pump Flow Capacity | 45.0 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 3.8 s |
| Dump Time | 2.9 s |
| Relief Valve Setting | 4,351 psi |
| Pump Type | Load-sensing variable axial piston pump with output and flow control and pressure cut-off in the control block |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 119 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket on Ground | 308 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 25,181 lb |
| Bucket Width | 98 in |
| Digging depth | 24 in |
| Arm length | 102 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Alternator | — |
| Battery | 2 x 135 Ah |
| Starter | 24/10.5 (V/HP) |
