Liebherr

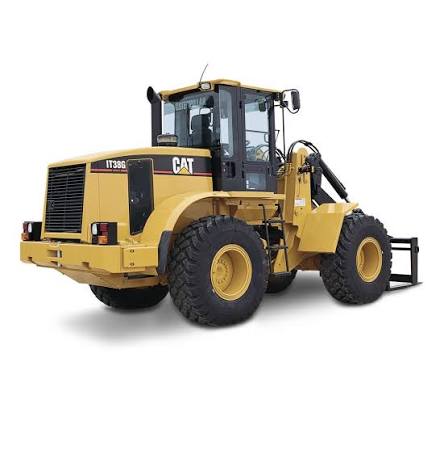

Caterpillar
IT38G
Wheel Loader
89 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 53,462 lb |
|---|---|
| Fuel Capacity | 87.2 gal |
| Tire Size | 26.5 R 25 |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Static Tipping Weight | 40,455 lb |
| Operating Voltage | 24 V |
| Turning Radius | 280 in |
| Engine Oil Fluid Capacity | 6.3 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 13.5 gal |
| Rear Axle/Diff Fluid Capacity | 13.5 gal |
Engine
| Engine Model | D 926 TI-E A2 |
|---|---|
| Displacement | 608 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 265.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Inline engine water-cooled exhaust-turbo charged with intercooler |
| Torque Measured @ | 1,200 rpm |
Hydraulic System
| Pump Flow Capacity | 76.7 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 3.5 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 5,076 psi |
| Pump Type | Load-sensing variable axial piston pump with output control and pressure cutoff |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 137 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 354 in |
| Hinge Pin - Max Height | 180 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Transmission Type | Stepless hydrostatic travel drive 2plus2 |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.90 yd³ |
|---|---|
| Dump Clearance at Max Raise | 131 in |
| Breakout Force | 39,342 lb |
| Bucket Width | 119 in |
