Volvo
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

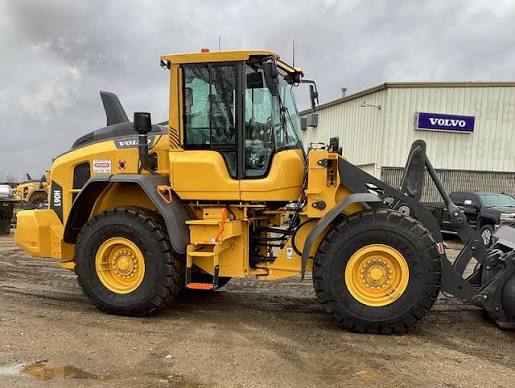

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Fuel Capacity | 58.7 gal |
|---|---|
| Hydraulic System Fluid Capacity | 23.8 gal |
| Engine Oil Fluid Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 5.9 gal |
| Rated Bucket Capacity | 2.90 – 9.19 yd³ |
| DEF tank capacity | 5.3 gal |
Engine
| Engine Model | Volvo D6J |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 184.0 hp |
| Net Power | 184.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Weights
| Operating Weight | 32,220 lb |
|---|
Hydraulic System
| Working pressure | Pump 2 - 31 MPa Pump 3 - 21 MPa |
|---|---|
| Engine speed | 1,900 rpm |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 121 in |
| Width Over Tires | 98 in |
| Length with Bucket on Ground | 299 in |
| Hinge Pin - Max Height | 159 in |
Bucket
| Dump Clearance at Max Raise | 117 in |
|---|---|
| Breakout Force | 31,204 lb |
General Specifications
| Operating Weight | 34,350 (15,580) Starting 2024 Model Year |
|---|---|
| Bucket Capacity | 3.7 (2.8) Starting 2024 Model Year |
| Engine type | Volvo D6J Starting 2019 Model Year |
| Engine Power | 186 (139) Starting 2021 Model Year |
| Max Dump Height | 9.6 (2.9) Starting 2024 Model Year |
Drive System
| Transport speed, maximum | 28.5 mph |
|---|---|
| Torque multiplication, stall ratio | 2.5:1 Non Lock-up / 2.59:1 Lock-up |
| Transmission | Volvo HTE 125C Non Lock-up / HTE 125 Lock-up |
Hydraulic cycle times (unloaded)
| Total cycle time | 10.5 s |
|---|---|
| Lift | 5.4 s |
| Lower | 3.2 s |
| Tilt | 1.9 s |
Steering System
| Articulation Angle | 40 ° |
|---|---|
| Maximum flow | 15.9 gal/min |
| Steering cylinders | 2 |
| Working pressure | 21 MPa 210 bar |
| Cylinder bore | 3 in |
| Rod diameter | 2 in |
| Stroke | 15 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Battery capacity | — |
| Alternator rating | 3135/80 (W/A) |
| Starter motor output | 7.4 hp |
| Cold cranking capacity | 1000 A |
Axles
| Front | Volvo AWB 25 |
|---|---|
| Rear | Volvo AWB 20 |
| Axle oil front | 9.3 gal |
| Axle oil rear | 7.2 gal |
| Rear axle oscillation | 13 ° |
